Loudspeaker

Loudspeaker YD250-50-6F100C 10 Inch High Quality Bass Speaker for Sale, China Speaker Manufacturer

  • Model YD250-50-6F100CDiameter:Φ254mmCone Material:PaperEdge:ClothNominal Power:35wMaximum Power:70wImpedance:615%ΩVoice coil:Φ38.6mmFo:4020%HzResponse:Fo-1kH

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD250-50-6F100C
  • PDF
  • Description
  • Order

Product Description

2

                          Model                  YD250-50-6F100C

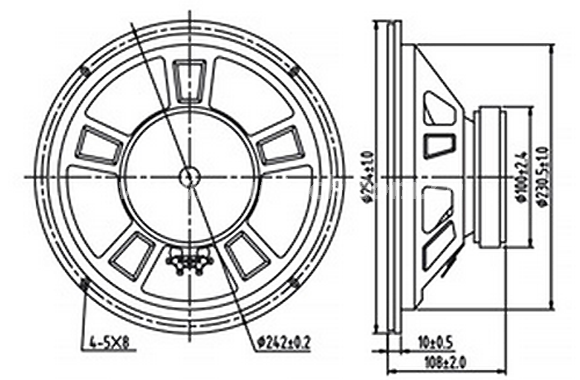

Diameter:

Φ254mm

Cone Material:

Paper

Edge:

Cloth

Nominal Power:

35w

Maximum Power:

70w

Impedance:

6±15%Ω

Voice coil:

Φ38.6mm

Fo:

40±20%Hz

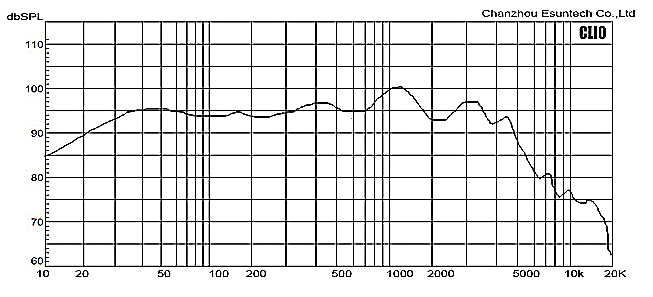

Response:

Fo-1kHz

S.P.L:

88±3dB/1W/0.5M

Magnet Size:

Φ100×45×20(Ferrite)

Net weight:

1260g

3
