Medical Equipment Speaker

Loudspeaker 102mm YD102-28-8F45P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 102mm YD102-28-8F45P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-28-8F45P-R Dimension:Φ102*32H mmCone Material:PaperEdge:PaperNominal Power:2WMaximum Po

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-28-8F45P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-28-8F45P-R  Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD102-28-8F45P-R

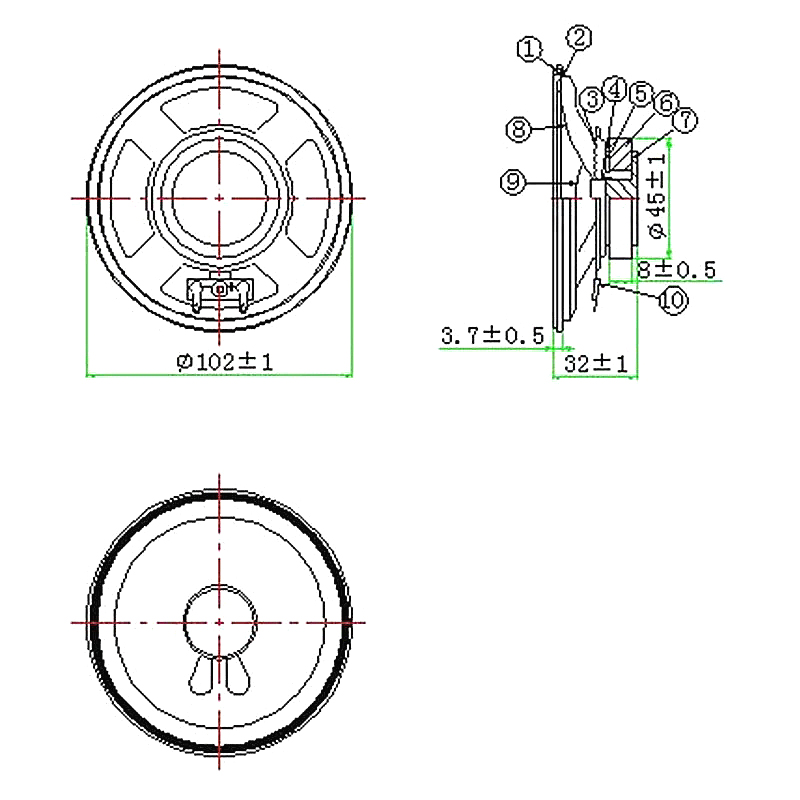

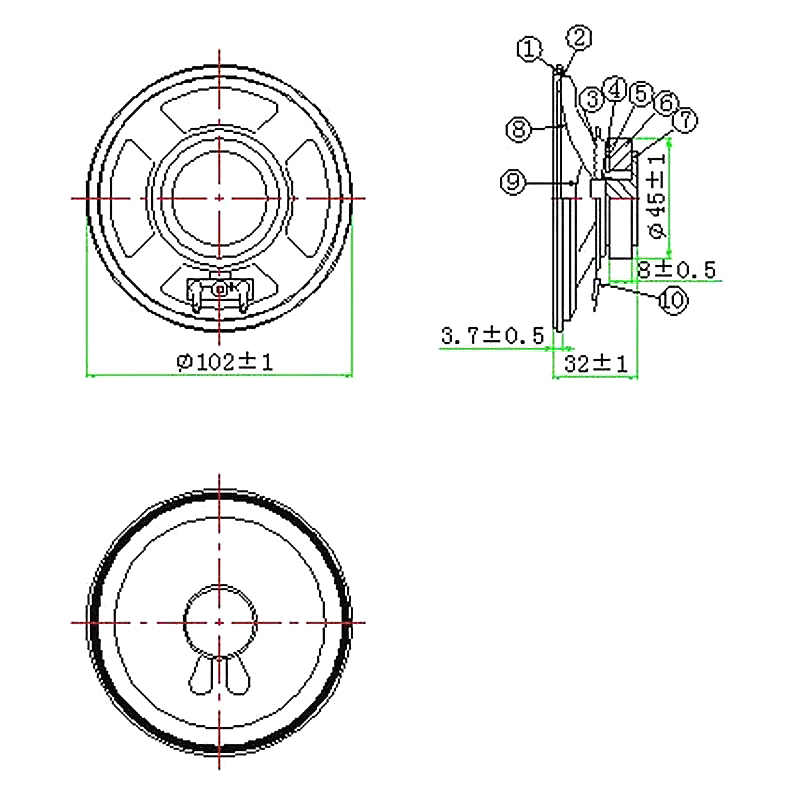

Dimension:Φ102*32H mm
Cone Material:Paper
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8Ω±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:220±20%
Response:Fo~15KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ45*22*8mm
Net weight:118g±8%
