Product Description

Loudspeaker 77mm YD77-45-8F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd





Model YD77-45-8F40P-R

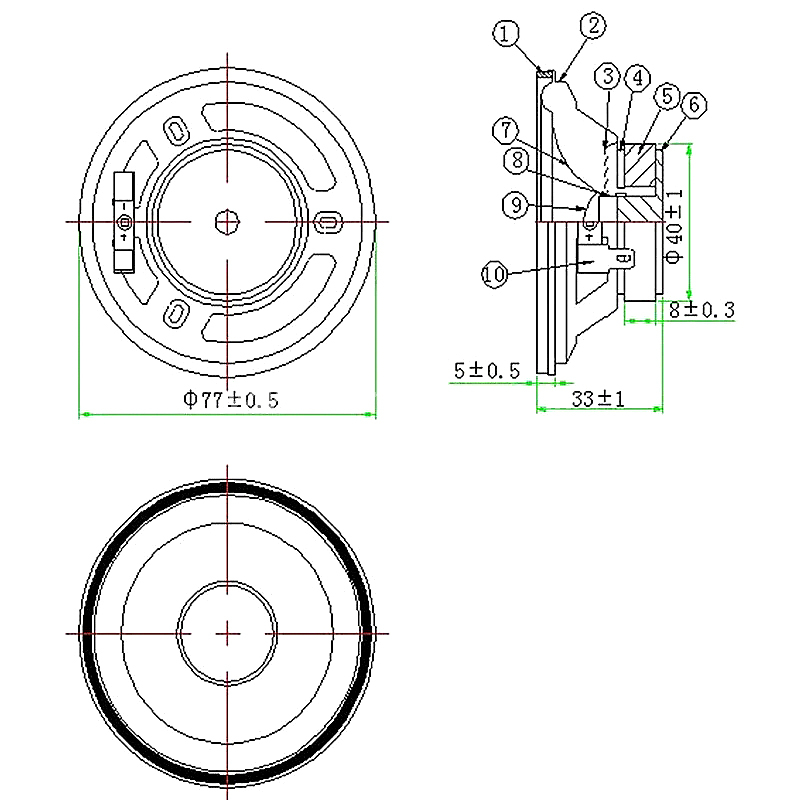

Dimension: Φ77*33H mm
Cone Material: Paper
Edge: Foam
Nominal Power: 3W
Maximum Power: 5W
Impedance: 8±15%Ω
Voice coil: Φ13.28mm PL+Cu
Fo: 150±20%Hz

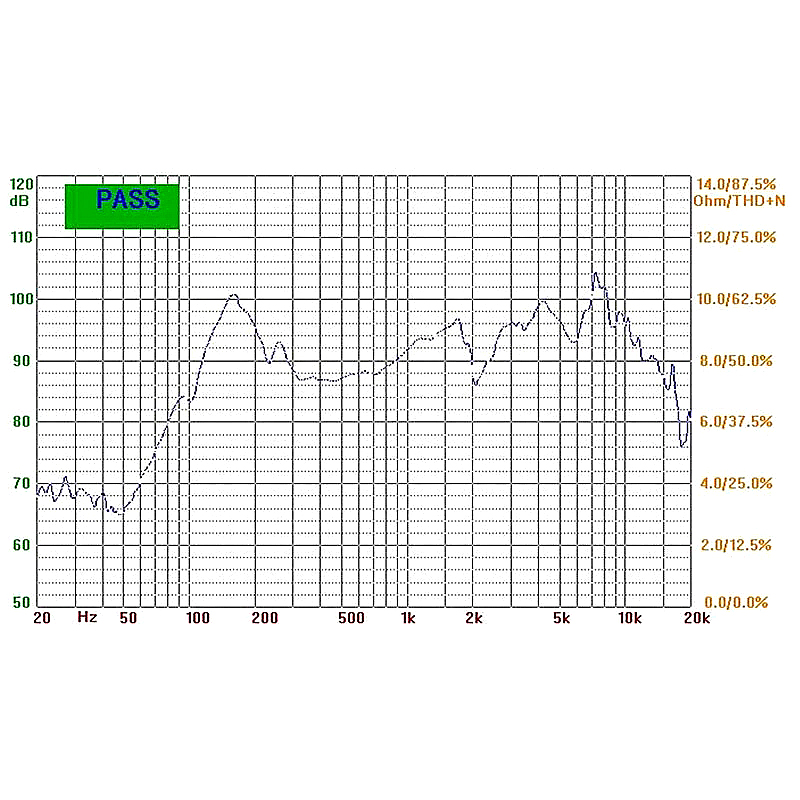

Response: Fo~15KHZ
S.P.L: 90±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size: Φ40*19*8mm
Net weight: 100g±8%
