Loudspeaker 50mm YD50-43-32N12.5P-R 18mm magnet Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 50mm YD50-43-32N12.5P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-43-32N12.5P-RDimension:Φ50*19H mmCone Material:PaperEdge:FoamNominal Power:0.5WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-43-32N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-43-32N12.5P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD50-43-32N12.5P-R

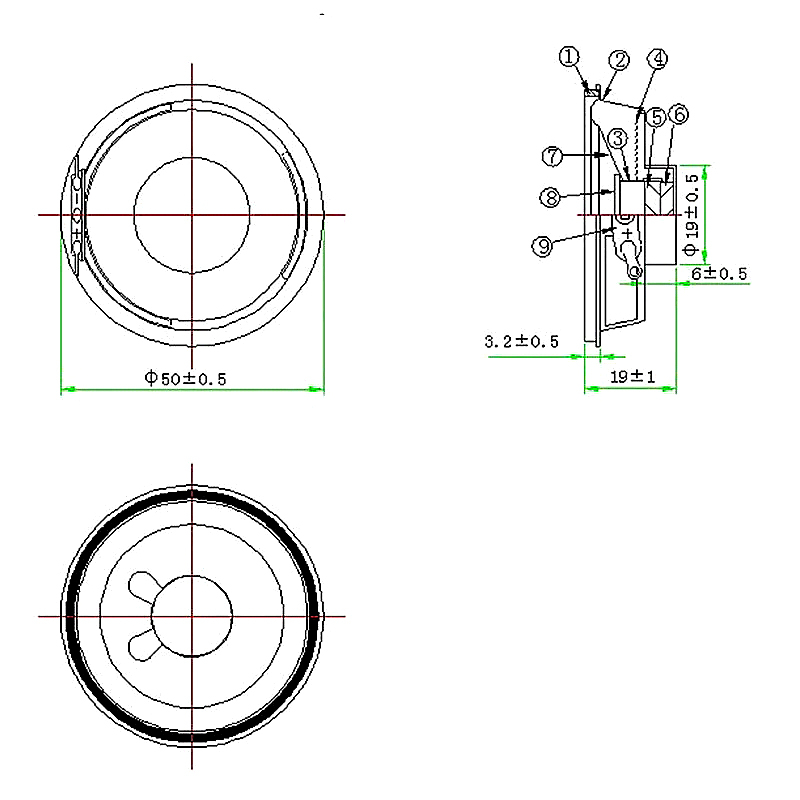

Dimension:Φ50*19H mm
Cone Material:Paper
Edge:Foam
Nominal Power:0.5W
Maximum Power:1W
Impedance:32±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:100±20%Hz

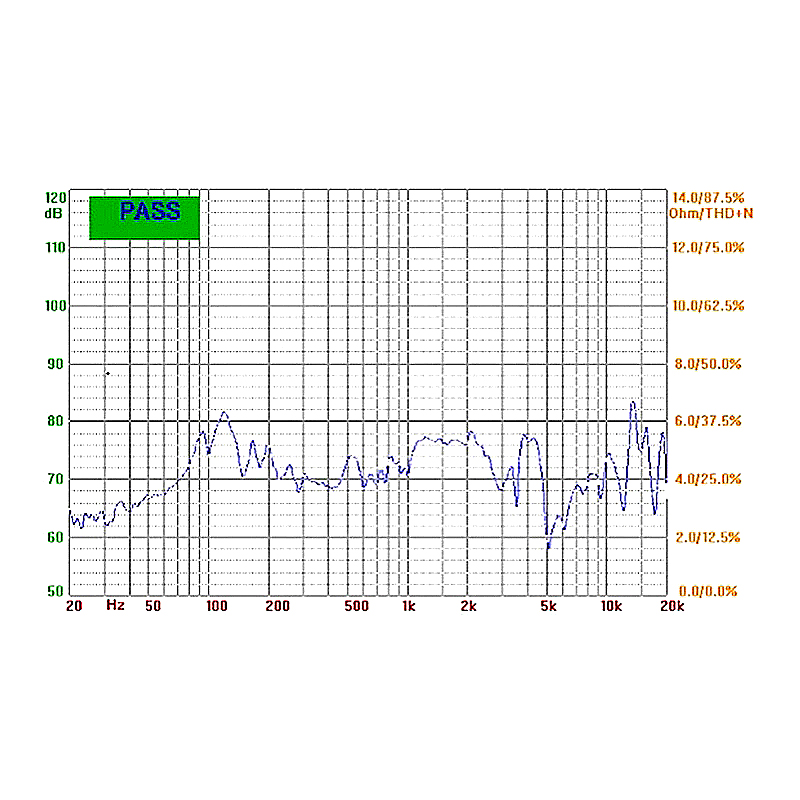

Response:100-20KHZ
S.P.L:74±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ12.5*2.5mm
Net weight:24g±8%
