Loudspeaker

Loudspeaker 102mm YD102-19-8F55P-R Min Full Range car Speaker Drivers

  • Loudspeaker 102mm YD102-19-8F55P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-19-8F55P-RDimension:Φ102*36H mmCone Material:Paper Edge:FoamNominal Power:15WMaximum Power:20W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-19-8F55P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-19-8F55P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD102-19-8F55P-R

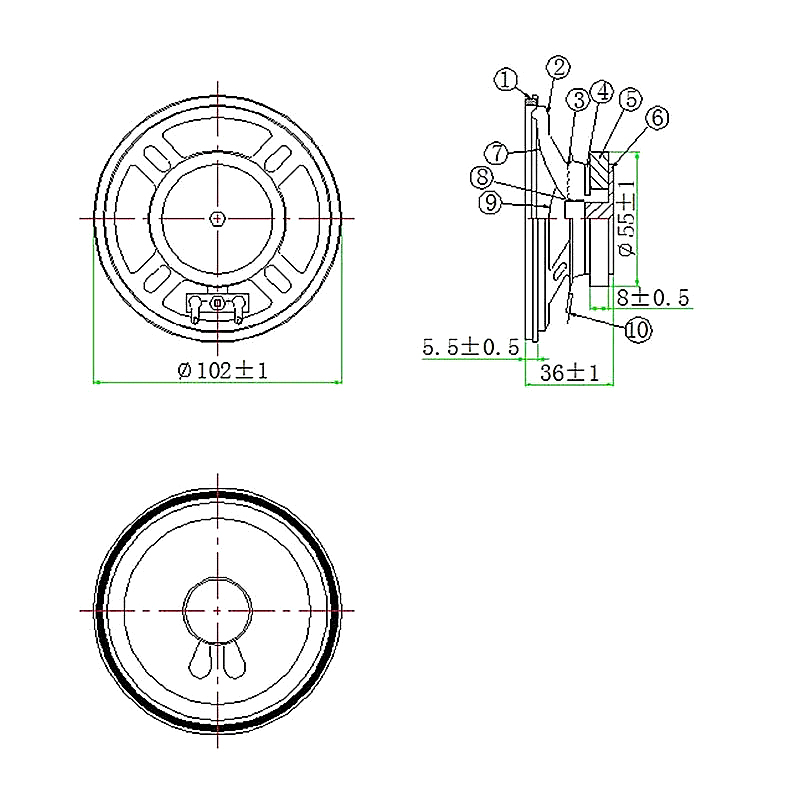

Dimension:Φ102*36H mm
Cone Material:Paper
Edge:Foam
Nominal Power:15W
Maximum Power:20W
Impedance:8±15%Ω
Voice coil:Φ14.28mm KSV+Cu
Fo:150±20%Hz
Response:Fo~15KHZ
S.P.L:93±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ55*25*8mm
Net weight:165g±8%
