Loudspeaker

Loudspeaker YD250-17-4F126R 10 Inch High Quality Bass Speaker for Sale

  • Model YD250-17-4F126RDiameter:Φ256mmCone Material:PaperEdge:RubberNominal Power:80wMaximum Power:150wImpedance:415%ΩVoice coil:Φ50.8mmFo:3520%HzResponse:Fo-1

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD250-17-4F126R
  • PDF
  • Description
  • Order

Product Description

2

                           Model                 YD250-17-4F126R

Diameter:

Φ256mm

Cone Material:

Paper

Edge:

Rubber

Nominal Power:

80w

Maximum Power:

150w

Impedance:

4±15%Ω

Voice coil:

Φ50.8mm

Fo:

35±20%Hz

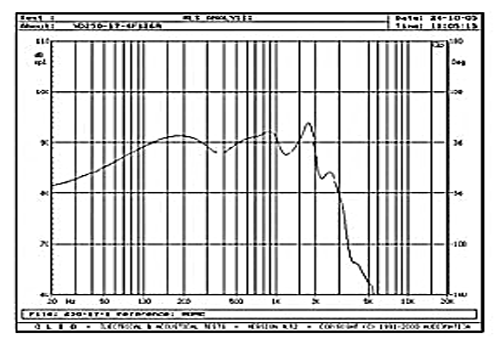

Response:

Fo-1kHz

S.P.L:

89±3dB/1W/0.5M

Magnet Size:

Φ126×62×20(Ferrite)

Net weight:

2668g
