Loudspeaker

Loudspeaker 38mm YD38-4-8N12P Paper Cone Min Full Range Audio Speaker Drivers

  • ModelYD38-4-8N12PDiameter:Φ38mmCone Material:PaperEdge:PaperNominal Power:0.25wMaximum Power: 0.5wImpedance: 815%ΩVoice coil:Φ13.3mmFo:48020%Hz Response:Fo-4.5kHz S.P.L:833dB/1.0W/0.5MMagnet Size:Φ12

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD38-4-8N12P
  • PDF
  • Description
  • Order

Product Description

2

Model

YD38-4-8N12P

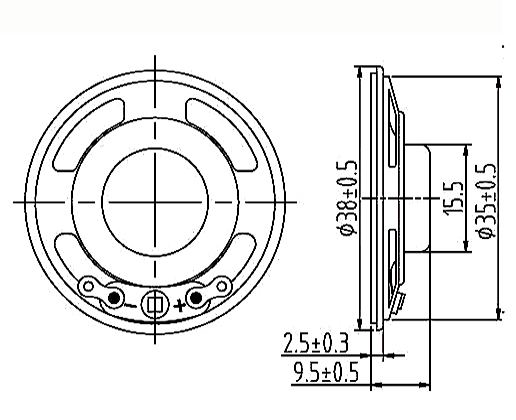

Diameter:

Φ38mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.25w

Maximum Power:

0.5w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

480±20%Hz

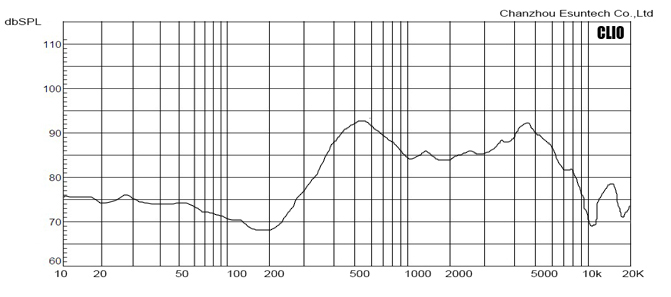

Response:

Fo-4.5kHz

S.P.L:

83±3dB/1.0W/0.5M

Magnet Size:

Φ12×2(NdFeB)

Net weight:

10g
