Loudspeaker

Loudspeaker 50mm YD50-41-4N12.5P-R 19mm magnet Multimedia Speaker Drivers

  • Loudspeaker 50mm YD50-41-4N12.5P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-41-4N12.5P-RDimension:Φ50*20H mmCone Material:PaperEdge:FoamNominal Power:3WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-41-4N12.5P-R
  • PDF
  • Description
  • Order

Product Description

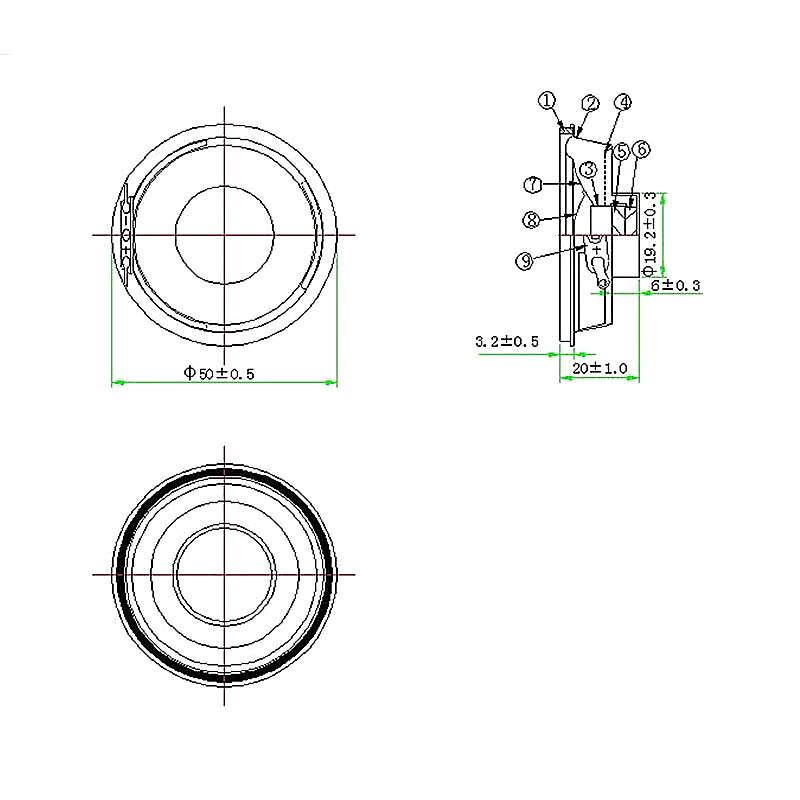

Loudspeaker 50mm YD50-41-4N12.5P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD50-41-4N12.5P-R
Dimension:Φ50*20H mm
Cone Material:Paper
Edge:Foam
Nominal Power:3W
Maximum Power:4W
Impedance:4±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:190±20%Hz
Response:Fo~20KHZ
S.P.L:84±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ12.5*2.5mm
Net weight:24g±8%
