Loudspeaker 77mm YD77-47-4F55P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 77mm YD77-47-4F55P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD77-47-4F55P-RDimension:77*77*42H mmCone Material:PaperEdge:RubberNominal Power:10WMaximum Pow

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-47-4F55P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 77mm YD77-47-4F55P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD77-47-4F55P-R

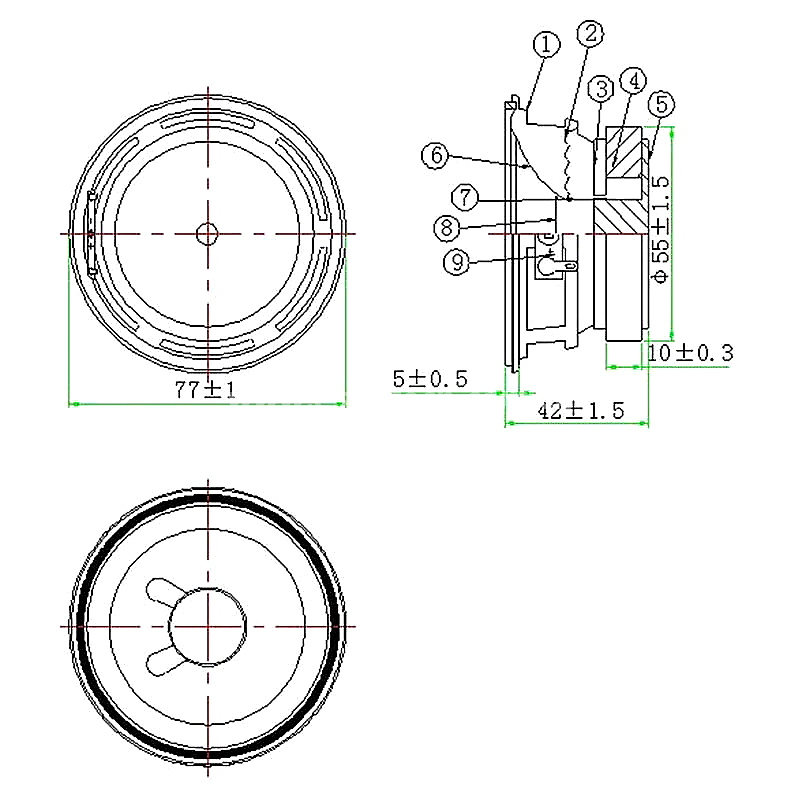

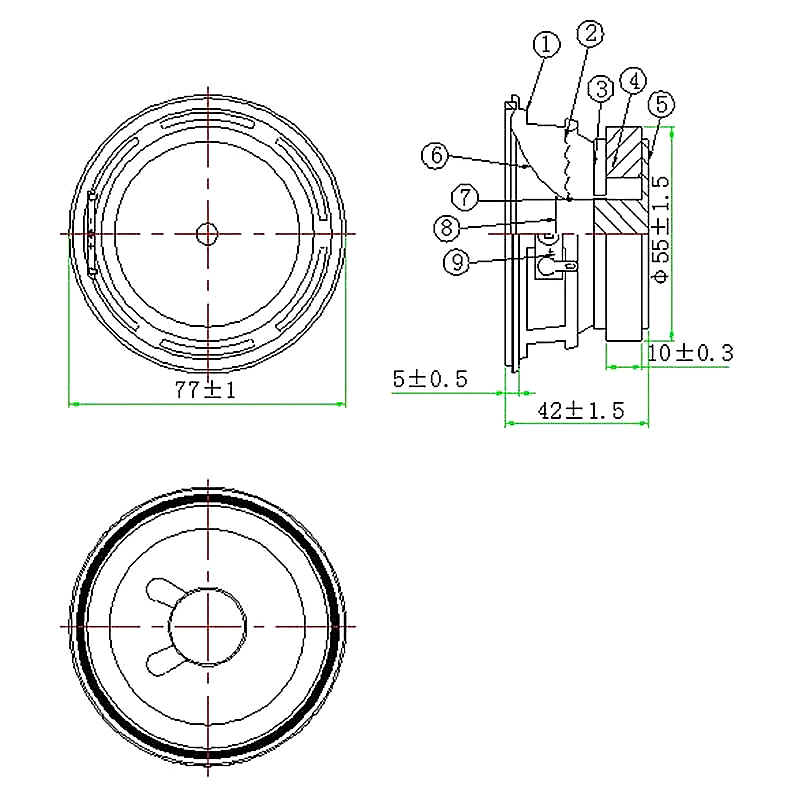

Dimension:77*77*42H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:15W
Impedance:4±15%Ω
Voice coil:Φ19.45mm  ASV+Cu
Fo:130±20%Hz

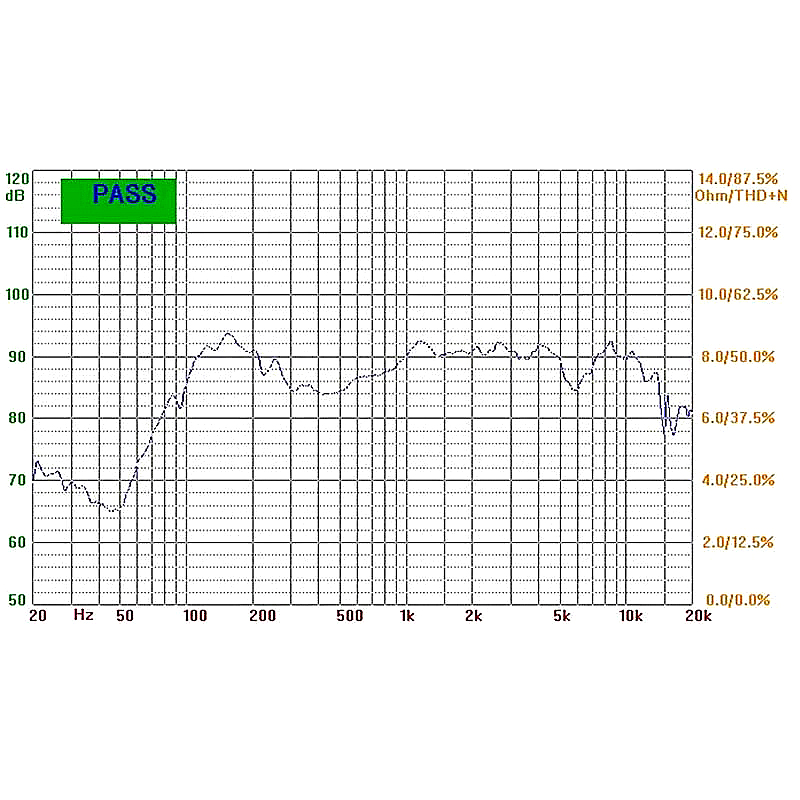

Response:Fo~20KHZ
S.P.L:89±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ55*25*10mm
Net weight:217g±8%
