TV Speaker

Loudspeaker 30x70mm YD3070-01-16N12.5P-R Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 30mmx70mm YD3070-01-16F12.5P-R Min Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD3070-01-16N12.5P-RDimension:30*70*24H mmCone Material:PaperEdge:Cloth Nominal Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD3070-01-16N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 30mmx70mm YD3070-01-16F12.5P-R Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD3070-01-16N12.5P-R

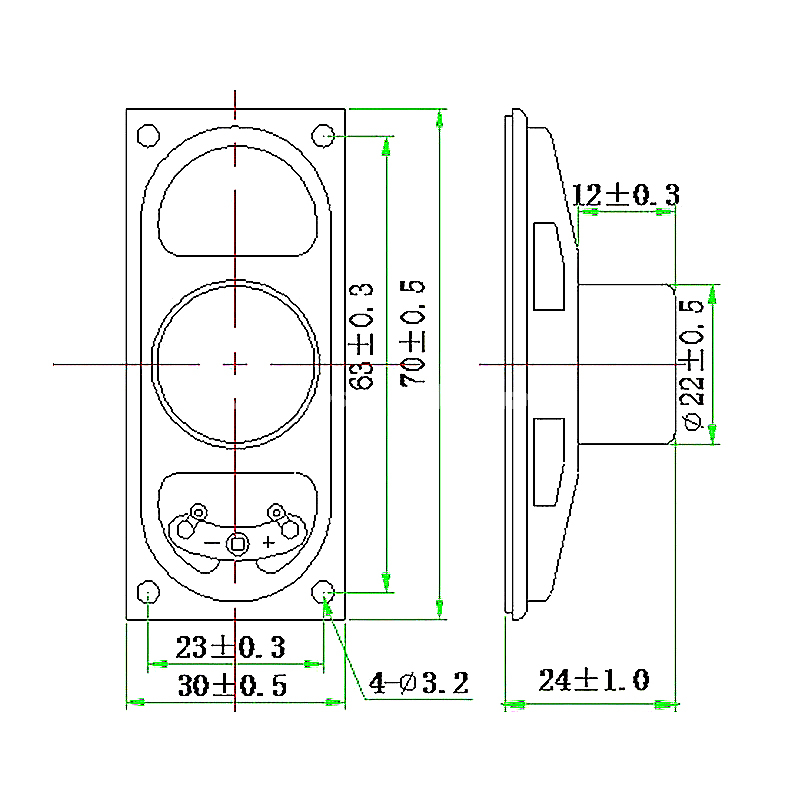

Dimension:30*70*24H mm
Cone Material:Paper
Edge:Cloth
Nominal Power:2W
Maximum Power:4W
Impedance:16±15%Ω
Voice coil:13.28mm PL+Cu
Fo:300±20%Hz

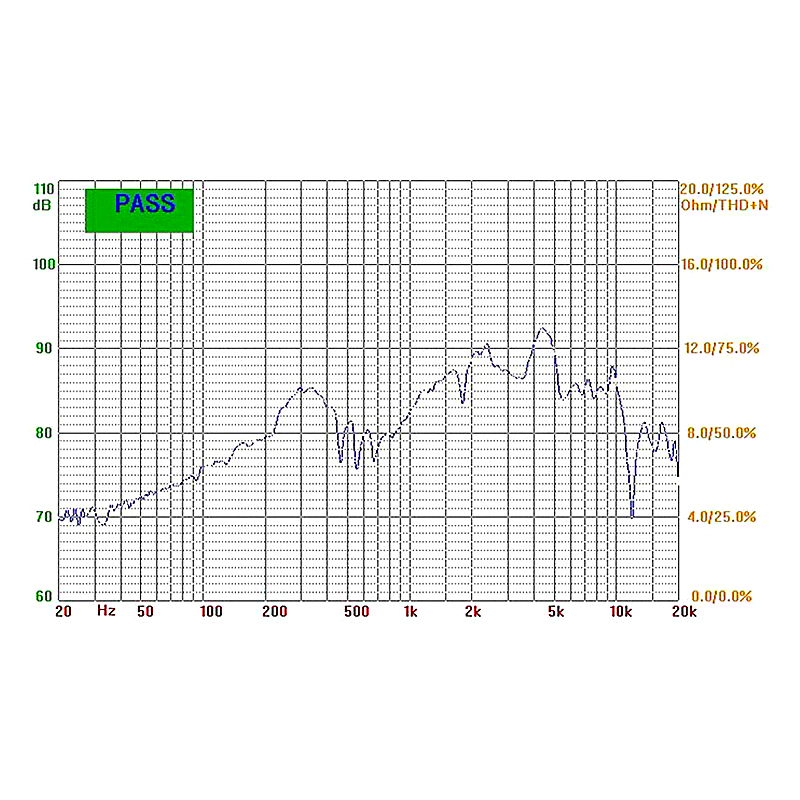

Response:Fo~10KHZ
S.P.L:85±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.5mm
Net weight:34g±8%
