Loudspeaker YDZ100-10-8F70M 4 Inch 102mm Waterproof Speaker Drivers Mylar Cone Speaker Unit

  • Model YDZ100-10-8F70MDiameter:102102mmCone Material:MylarEdge:MylarNominal Power:10wMaximum Power:20wImpedance:815%ΩVoice coil:Φ19.45mmFo:90020%HzResponse:Fo-4kHzS.P.L:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YDZ100-10-8F70M
  • PDF
  • Description
  • Order

Product Description

2

                     Model            YDZ100-10-8F70M

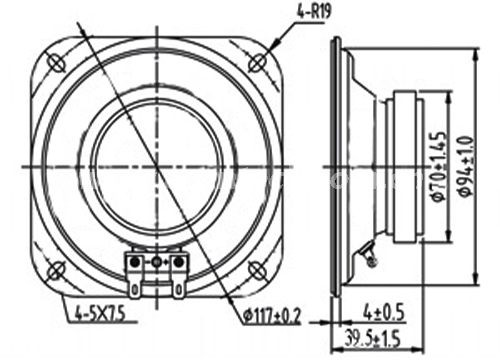

Diameter:

102×102mm

Cone Material:

Mylar

Edge:

Mylar

Nominal Power:

10w

Maximum Power:

20w

Impedance:

8±15%Ω

Voice coil:

Φ19.45mm

Fo:

900±20%Hz

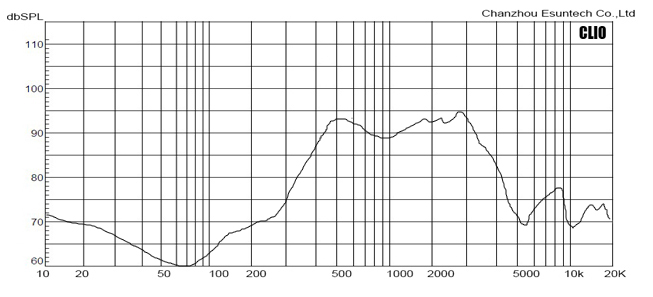

Response:

Fo-4kHz

S.P.L:

100±3dB/W/M

Magnet Size:

Φ70×24×10(Ferrite)

Net weight:

452g
