Loudspeaker

Loudspeaker YD200-35-4F120U 8 Inch Loudspeaker Drivers, High Quality Bass Speaker for Sale

  • Model YD200-35-4F120UDiameter:Φ207.5mmCone Material:PaperEdge:FoamNominal Power:60wMaximum Power:100wImpedance:415%ΩVoice coil:Φ38.6mmFo:4020%HzResponse:Fo-1k

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD200-35-4F120U
  • PDF
  • Description
  • Order

Product Description

2

                          Model                 YD200-35-4F120U

Diameter:

Φ207.5mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

60w

Maximum Power:

100w

Impedance:

4±15%Ω

Voice coil:

Φ38.6mm

Fo:

40±20%Hz

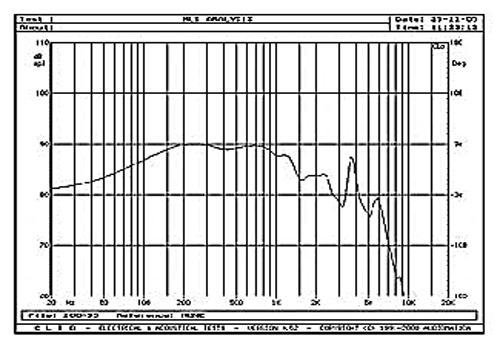

Response:

Fo-1kHz

S.P.L:

89±3dB/1W/0.5M

Magnet Size:

Φ120×60×20(Ferrite)

Net weight:

2050g

3
