Ceiling Speaker

Loudspeaker 8ohm 10W YD166-49-8F70P-R 6.5 Inch 166mm Full Range Best Audio Speaker Parts for Sale Drivers

  • Diameter:Φ165mmCone Material:PaperEdge:PaperNominal Power:5wMaximum Power:10wImpedance: 815%ΩFo:10020%HzResponse:Fo-14kHzS.P.L:883dB/W/MMagnet Size:Φ70X24X8(Ferrit)Net weight: 234g

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD166-49-8F70P-R
  • Description
  • Order

Product Description

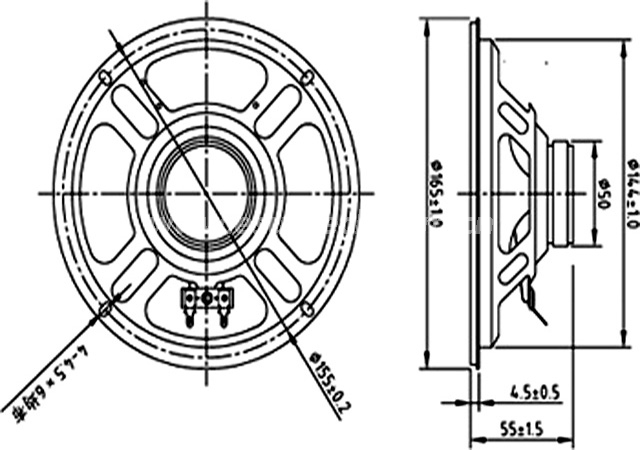

Diameter:

Φ165mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

5w

Maximum Power:

10w

Impedance:

8±15%Ω

Fo:

100±20%Hz

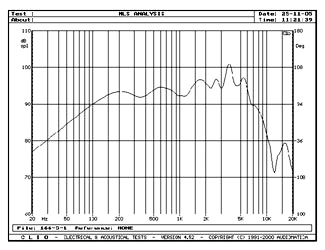

Response:

Fo-14kHz

S.P.L:

88±3dB/W/M

Magnet Size:

Φ70X24X8(Ferrit)

Net weight:

234g
