Ceiling Speaker

Loudspeaker YD166-49-8F50P-R 6.5 Inch 166mm Full Range Best Audio Speaker Drivers for Sale 8ohm 5W

  • ModelYD166-49-8F50P-RDiameter: Φ165mmCone Material: PaperEdge: PaperNominal Power: 5WMaximum Power: 10WImpedance: 815%ΩFo: 10020%HzResponse: Fo-14kHzS.P.L: 883dB/W/MMagnet Size: Φ50X24X8(Ferrit)Net w

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD166-49-8F50P-R
  • Description
  • Order

Product Description

QQ截图20201211134537


ModelYD166-49-8F50P-R

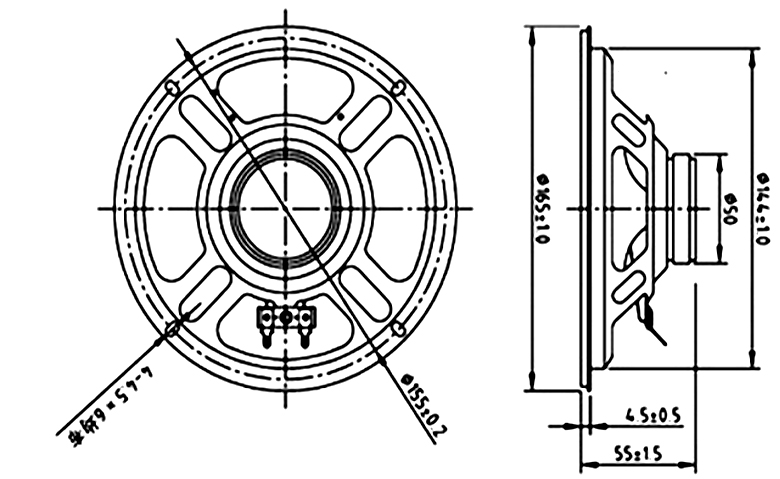

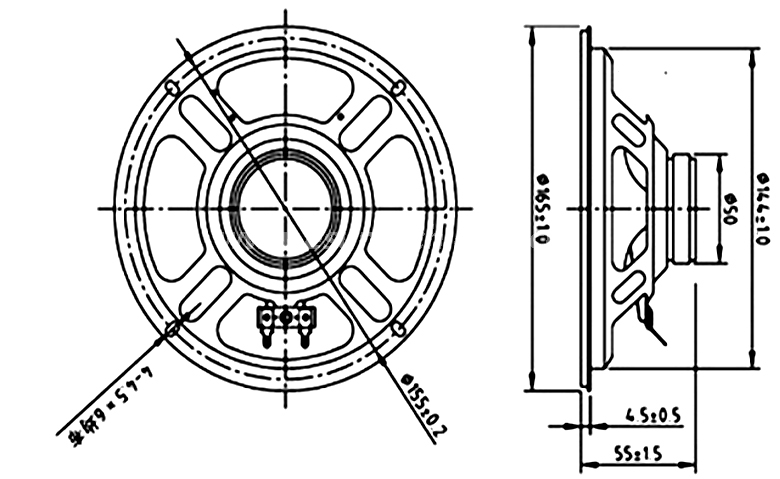

Diameter: Φ165mm
Cone Material: Paper
Edge: Paper
Nominal Power: 5W
Maximum Power: 10W
Impedance:  8±15%Ω
Fo: 100±20%Hz

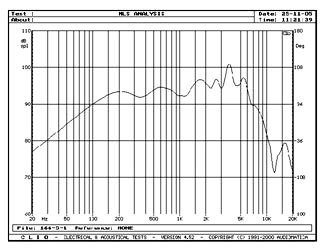

Response: Fo-14kHz
S.P.L: 88±3dB/W/M
Magnet Size: Φ50X24X8(Ferrit)
Net weight:  234g



3
