Telephone Speaker

Loudspeaker 66mm YD66-42-8N12.5P-R 18mm magnet 8 OHM Speaker Drivers

  • Loudspeaker 66mm YD66-42-8N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co LtdModelYD66-42-8N12.5P-RDimension:Φ66*15H mmCone Material:PaperEdge:PaperNominal Power:2WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-42-8N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 66mm YD66-42-8N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co Ltd


未标题-1 拷贝



ModelYD66-42-8N12.5P-R

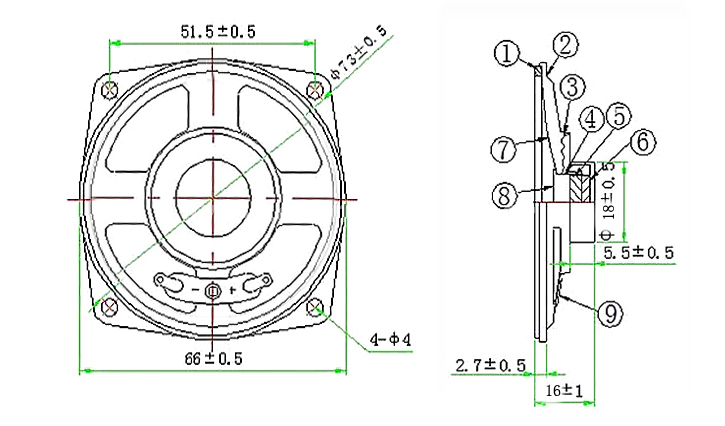

Dimension:Φ66*15H mm
Cone Material:Paper
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:450±20%

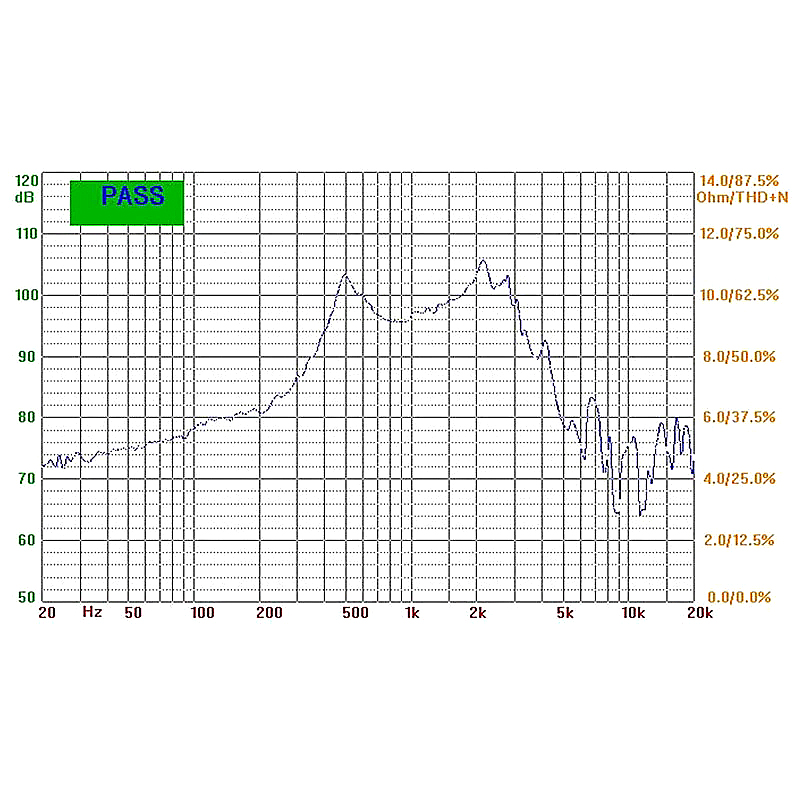

Response:Fo~4KHZ
S.P.L:98±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:24g±8%
