Loudspeaker

Loudspeaker 28mm YD28-01-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 28mm YD28-01-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD28-01-8N12.5P-RDimension:28*28*11H mmCone Material:PU+PaperEdge:PaperNominal Power:2WM

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD28-01-8N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 28mm YD28-01-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD28-01-8N12.5P-R

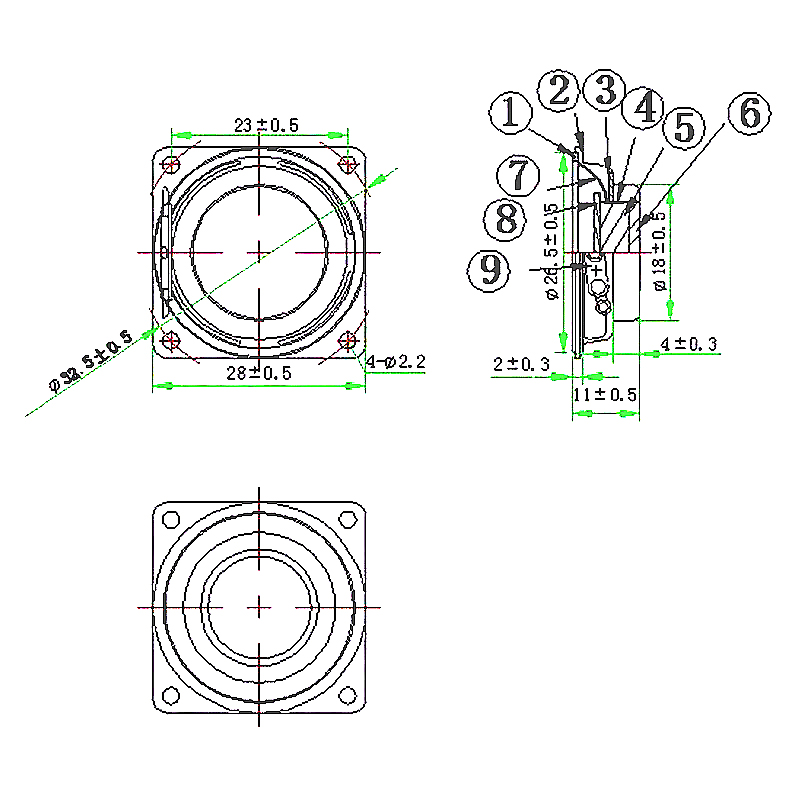

Dimension:28*28*11H mm
Cone Material:PU+Paper
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:500±20%Hz

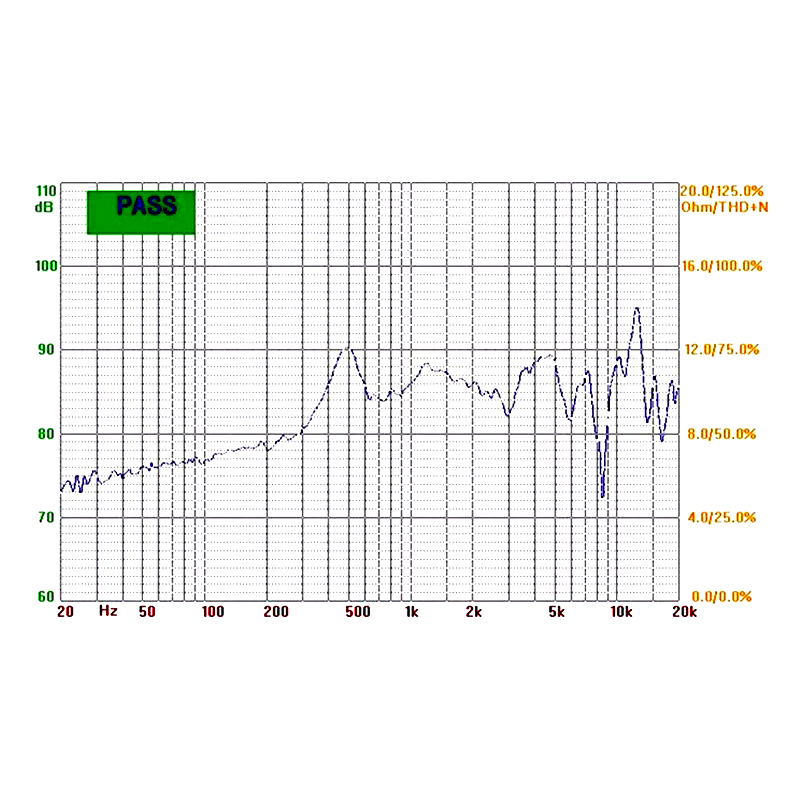

Response:Fo~20KHZ
S.P.L:86±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ12.5*2.0mm
Net weight:11g±8%
