Loudspeaker 53mm YD53-03-8N15M-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 53mm YD53-03-8N15M-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD53-03-8N15M-RDimension:53*53*28H mmCone Material:PPEdge:PUNominal Power:5WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD53-03-8N15M-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 53mm YD53-03-8N15M-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



spk-1

ModelYD53-03-8N15M-R

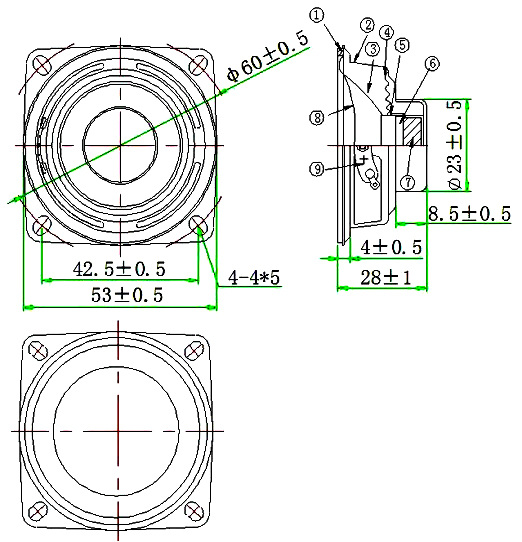

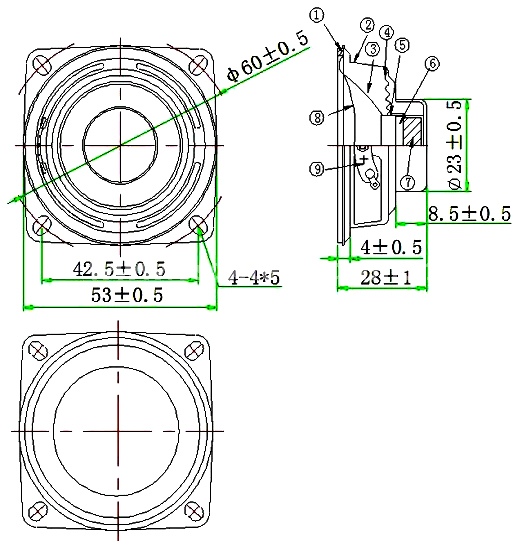

Dimension:53*53*28H mm
Cone Material:PP
Edge:PU
Nominal Power:5W
Maximum Power:6W
Impedance:8±15%Ω
Voice coil:Φ16.28mm
Fo:130±20%Hz

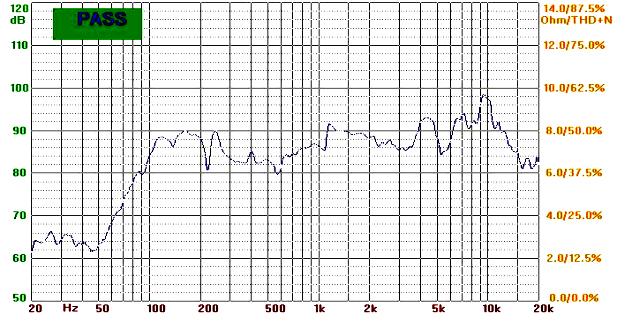

Response:Fo~20KHZ
S.P.L:85±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ15.5mm
Net weight:35g±8%
