Loudspeaker

Loudspeaker YDT1016-1-8F45P 4x6 Inch 8ohm 5W Car Speaker Drivers Stereo Sound Used for Audio System Car Door Speaker High End Speaker Firm

  • ModelYDT1016-1-8F45PDiameter: 100*160Cone Material: PaperEdge: PaperNominal Power: 5WMaximum Power: 15WImpedance: 815%ΩFo: 15520%HzResponse: Fo-10kHzS.P.L: 883dB/W/MMagnet Size: Φ45Φ228Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YDT1016-1-8F45P
  • Description
  • Order

Product Description

YD1016-1-8F45P-Model


ModelYDT1016-1-8F45P

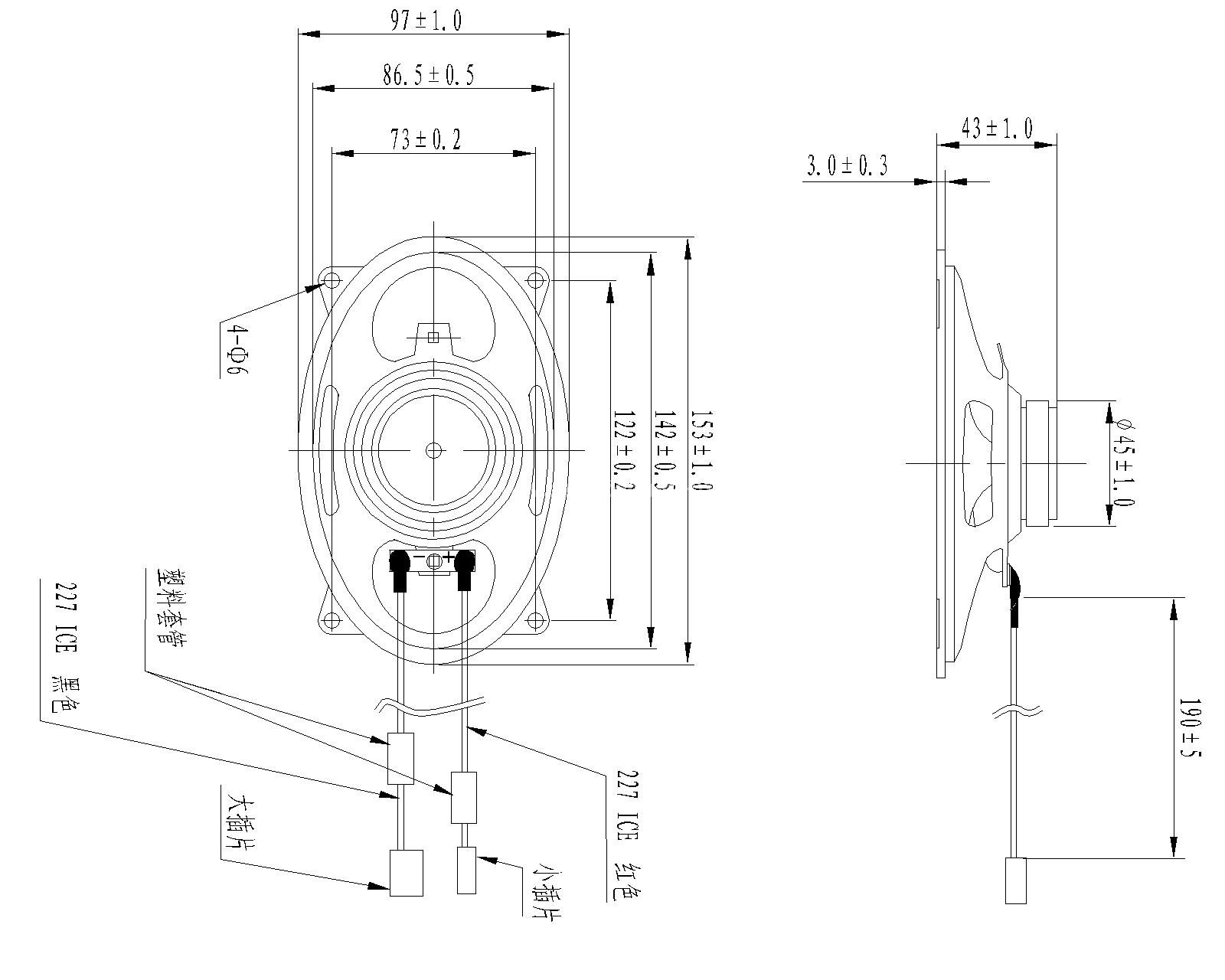

Diameter: 100*160
Cone Material: Paper
Edge: Paper
Nominal Power: 5W
Maximum Power: 15W
Impedance:  8±15%Ω
Fo: 155±20%Hz

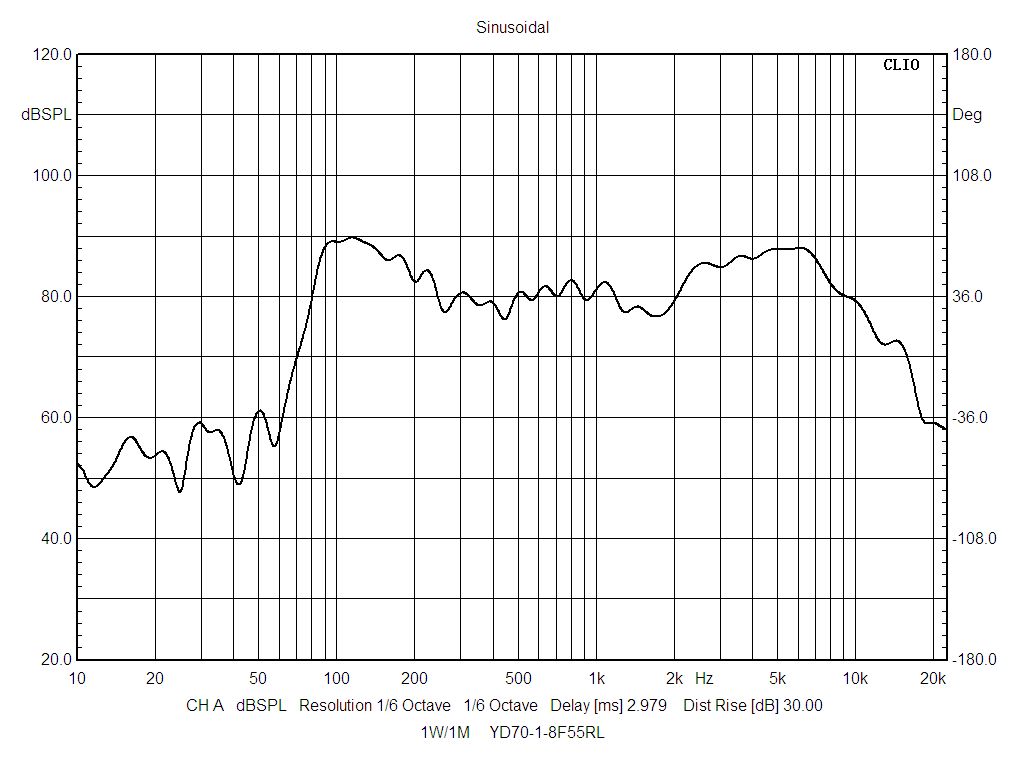

Response: Fo-10kHz
S.P.L: 88±3dB/W/M
Magnet Size: Φ45×Φ22×8
Net weight:

YDT1016-1-8F45P(东风)-Q
