Car Speaker

Loudspeaker YD77-13-8F70CPP 80mm*80mm 3" Car Speaker Used for Audio System

  • ModelYD77-13-8F70CPPDiameter: 80x80Cone Material: ppEdge: ClothNominal Power: 10WMaximum Power: 15WImpedance: 815%ΩFo: 15020%HzResponse: Fo-15kHzS.P.L: 883dB/W/MMagnet Size: Φ70Φ3210Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-13-8F70CPP
  • Description
  • Order

Product Description

YD77-13-8F70CPP-R-Model

ModelYD77-13-8F70CPP
Diameter: 80x80
Cone Material: pp
Edge: Cloth
Nominal Power: 10W
Maximum Power: 15W
Impedance:  8±15%Ω
Fo: 150±20%Hz

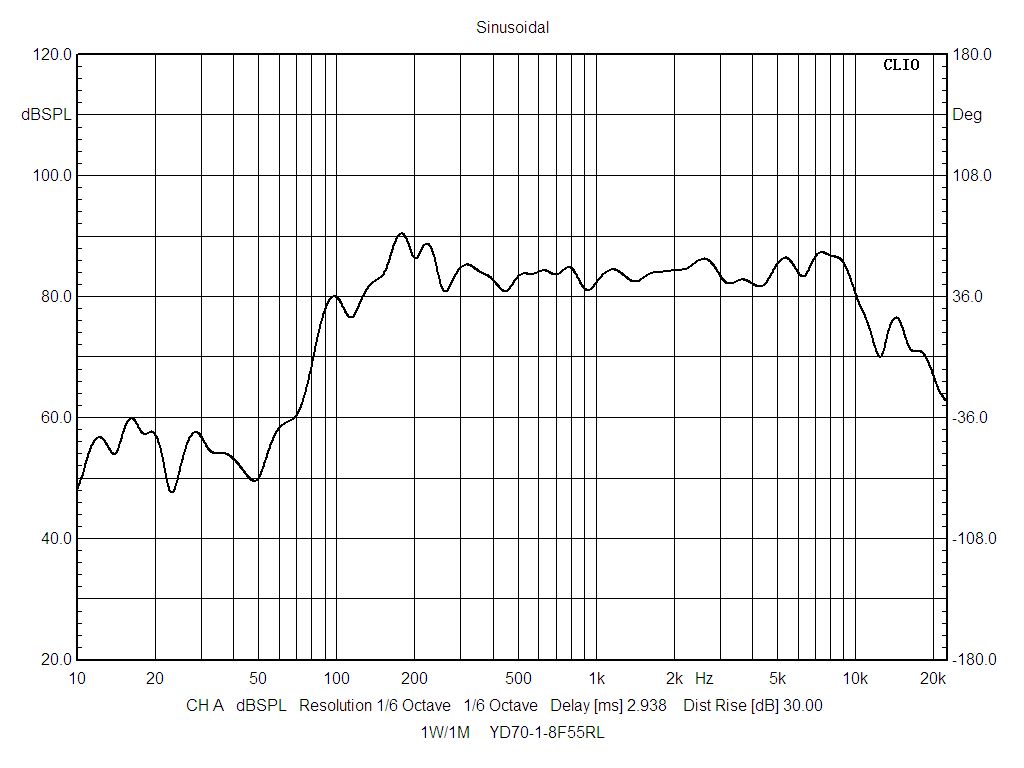

Response: Fo-15kHz
S.P.L: 88±3dB/W/M

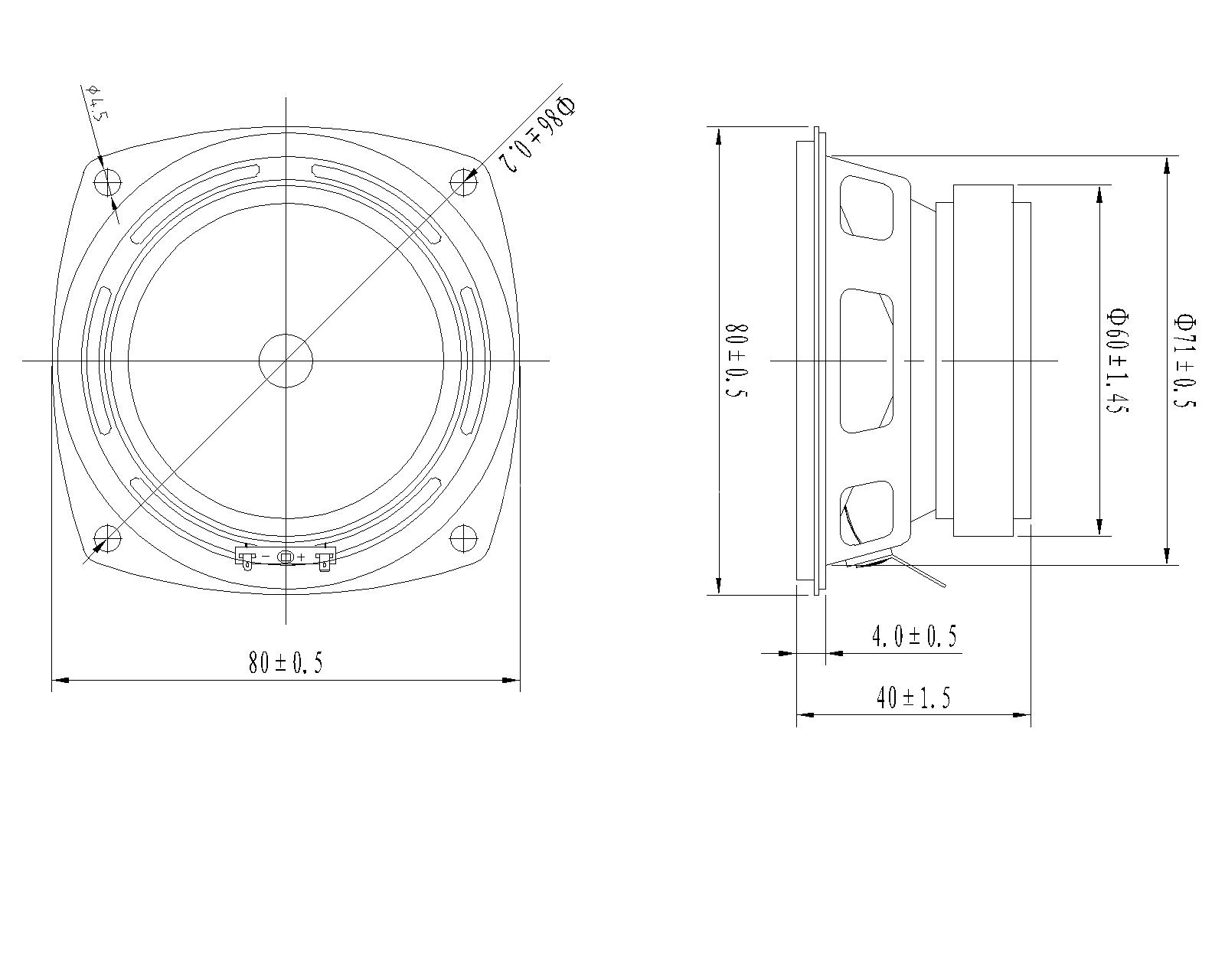

Magnet Size: Φ70×Φ32×10
Net weight:


YD77-13-8F70CPP-Q
