Car Speaker

Loudspeaker YD70-1-8F55R 115mm*70mm Car Speaker Used for Audio System

  • Model：YD70-1-8F55RDiameter: 115x70Cone Material: PaperEdge: RubberNominal Power: 15WMaximum Power: 20WImpedance: 815%ΩFo: 22020%HzResponse: Fo-15kHzS.P.L: 803dB/W/MMagnet Size: Φ55Φ258Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD70-1-8F55R
  • Description
  • Order

Product Description

YD70-1-8F55R-Model


Model：YD70-1-8F55R
Diameter: 115x70
Cone Material: Paper
Edge: Rubber
Nominal Power: 15W
Maximum Power: 20W
Impedance:  8±15%Ω
Fo: 220±20%Hz

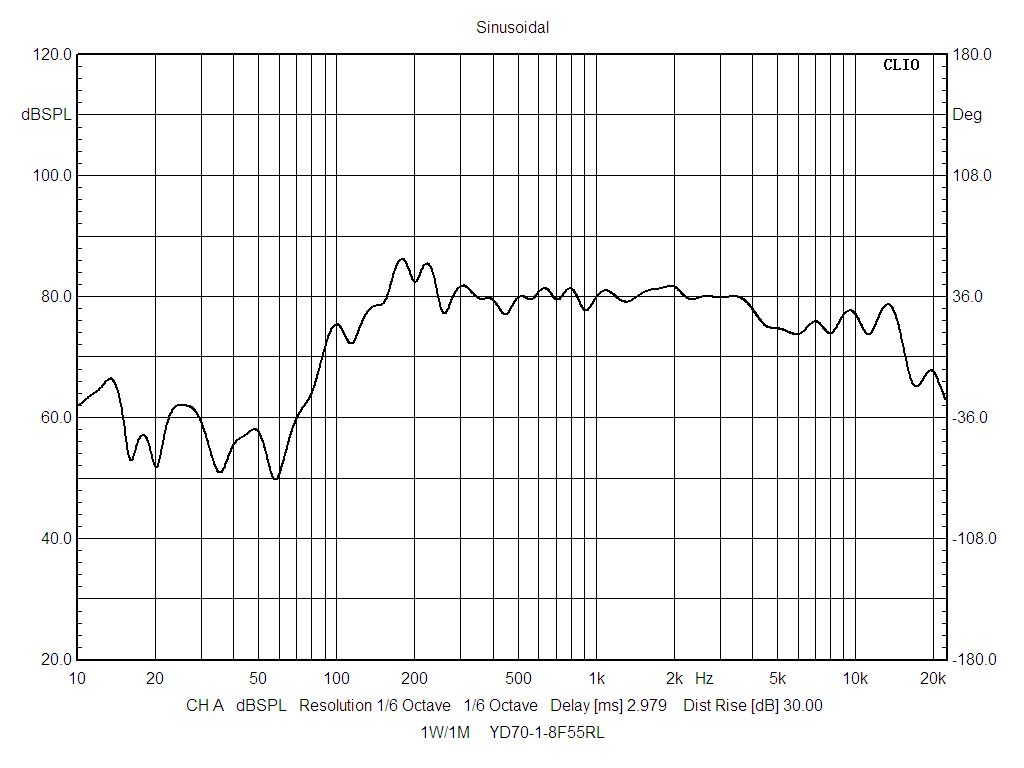

Response: Fo-15kHz
S.P.L: 80±3dB/W/M
Magnet Size: Φ55×Φ25×8
Net weight:

YD70-1-8F55R-Q
