Loudspeaker 66mm YD66-03-8N12.5P-R 22mm magnet 8 OHM Telephone Speaker Drivers

  • Loudspeaker 66mm YD66-03-8N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co LtdModelYD66-03-8N12.5P-RDimension:Φ66*19 mmCone Material:PaperEdge:PaperNominal Power:0.5WMaximum Pow

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-03-8N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 66mm YD66-03-8N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co Ltd


3-webp



ModelYD66-03-8N12.5P-R

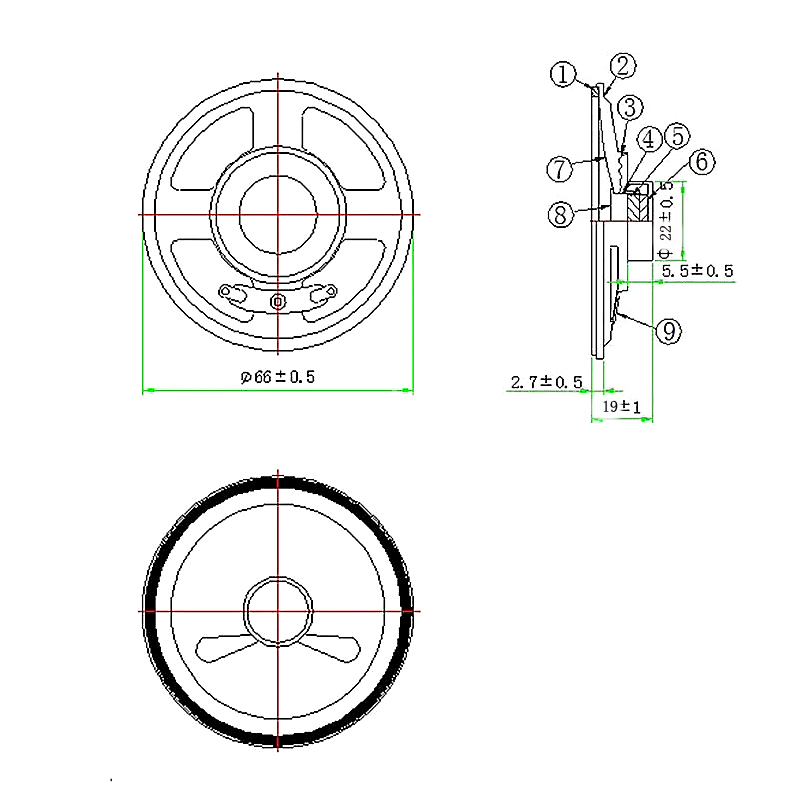

Dimension:Φ66*19 mm
Cone Material:Paper
Edge:Paper
Nominal Power:0.5W
Maximum Power:1.0W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:350±20%
Response:Fo~4KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:24g±8%
