Waterproof

Loudspeaker YD50-10-8N12.5M-R 2 inch Small Internal Magnetic Waterproof Speaker Parts

  • Model YD50-10-8N12.5M-RDiameter:Φ50mmCone Material:MylarEdge:MylarNominal Power:0.25wMaximum Power:0.5wImpedance:815%ΩVoice coil:Φ13.3mmFo:65020%HzResponse:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-10-8N12.5M-R
  • Diameter: Φ50mm*10.5mm
  • Description
  • Order

Product Description

2

                           Model                  YD50-10-8N12.5M-R

Diameter:

Φ50mm

Cone Material:

Mylar

Edge:

Mylar

Nominal Power:

0.25w

Maximum Power:

0.5w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

650±20%Hz

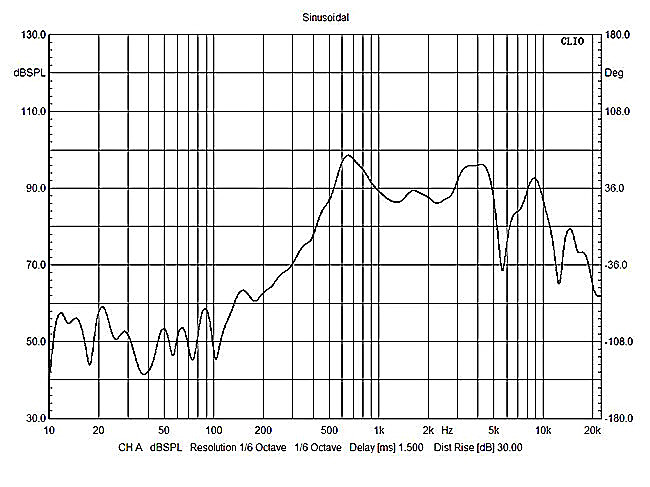

Response:

Fo-4kHz

S.P.L:

85±3dB/W/M

Magnet Size:

Φ12.5×2(NdFeB)

Net weight:

30g
