Loudspeaker YD50-14-8N12.5M-R 2 Inch 50mm Plastic Sheel Micro Waterproof Speaker Unit

  • Model YD50-14-8N12.5M-RDiameter:Φ50mmCone Material:MylarEdge:MylarNominal Power:0.5wMaximum Power:1.0wImpedance: 5020%ΩVoice coil:Φ10.3mmFo:30020%HzResponse:F

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-14-8N12.5M-R
  • Description
  • Order

Product Description

2

                          Model                YD50-14-8N12.5M-R

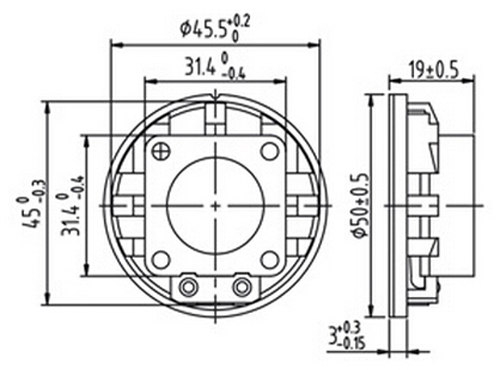

Diameter:

Φ50mm

Cone Material:

Mylar

Edge:

Mylar

Nominal Power:

0.5w

Maximum Power:

1.0w

Impedance:

50±20%Ω

Voice coil:

Φ10.3mm

Fo:

300±20%Hz

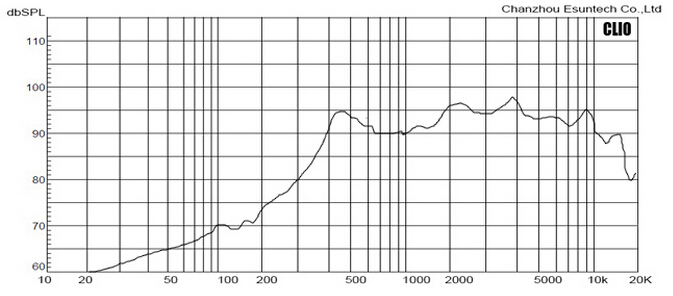

Response:

Fo-8kHz

S.P.L:

83±3dB/W/M

Magnet Size:

Φ28.5×12.5×2(Ferrite)

Net weight:

45g
