Waterproof

Loudspeaker YD50-1-8F32M-R 50mm Mini Waterproof Speaker Drivers

  • Model YD50-1-8F32M-RDiameter:Φ50mmCone Material:MylarEdge:MylarNominal Power:1.0wMaximum Power:2.0wImpedance:815%ΩVoice coil:Φ13.3mmFo:60020%HzResponse:Fo-4.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-1-8F32M-R
  • Diameter: Φ50mm
  • Description
  • Order

Product Description

2

                        Model                    YD50-1-8F32M-R

Diameter:

Φ50mm

Cone Material:

Mylar

Edge:

Mylar

Nominal Power:

1.0w

Maximum Power:

2.0w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

600±20%Hz

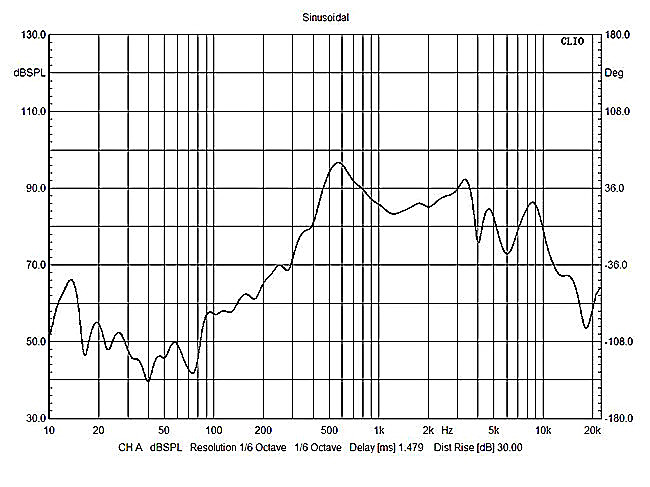

Response:

Fo-4.5kHz

S.P.L:

83±3dB/W/M

Magnet Size:

Φ32×Φ18×6(Ferrite)

Net weight:

49g
