Loudspeaker 50mm YD50-68-8N32P-R Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 50mm YD50-68-8N32P-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-68-8N32P-RDimension:Φ50*17H mmCone Material:PETEdge: PaperNominal Power:2WMaximum Power:3W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-68-8N32P-R
  • Diameter: Φ50*17H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-68-8N32P-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD50-68-8N32P-R

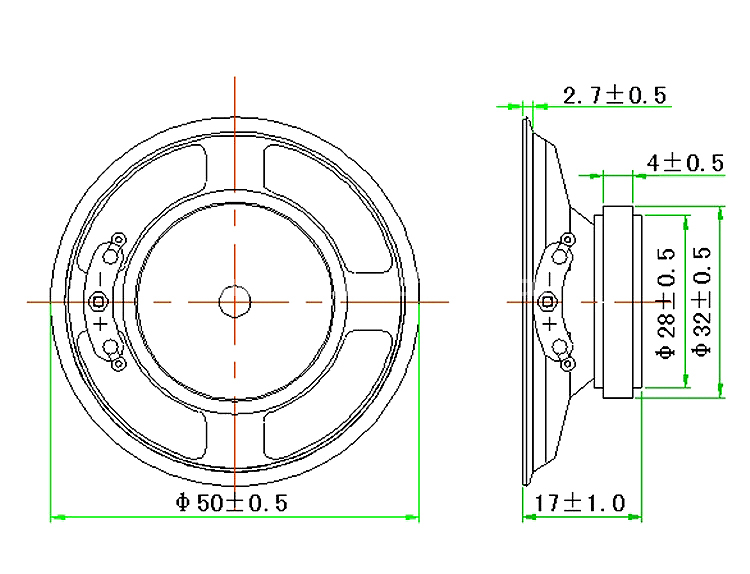

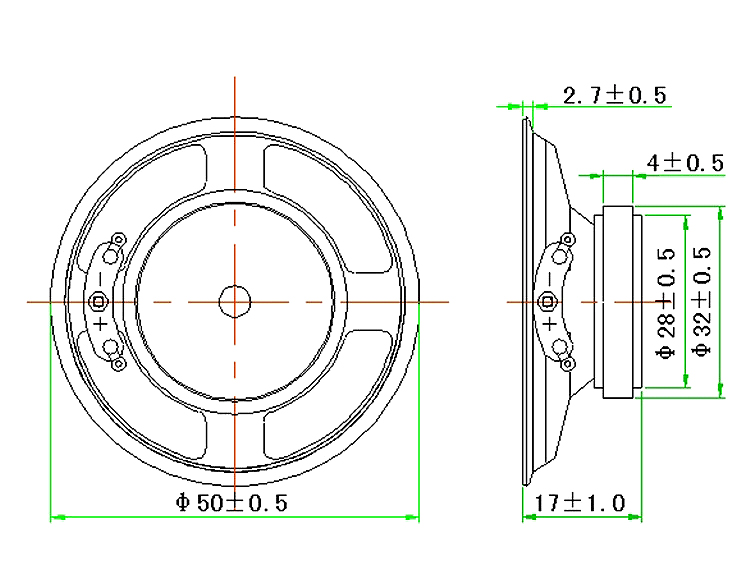

Dimension:Φ50*17H mm
Cone Material:PET
Edge: Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm Plastic
Fo:700±20%

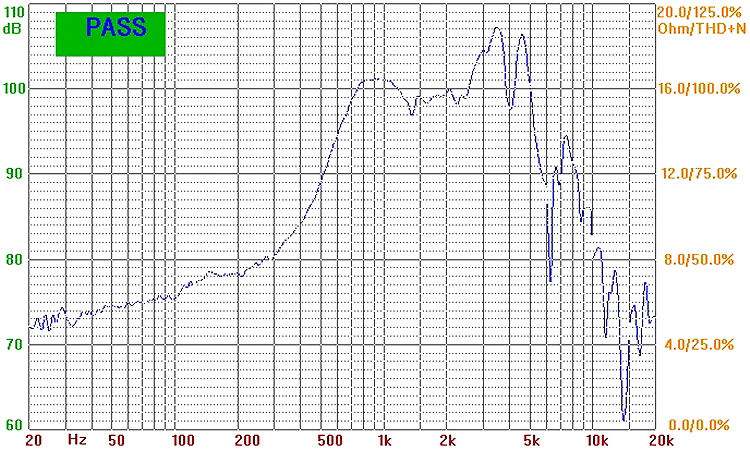

Response:Fo~5KHZ
S.P.L:100±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*4mm
Net weight:53g±8%
