Loudspeaker 50mm YD50-66-16F35M-R Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 50mm YD50-66-16F35M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-66-16F35M-RDimension:Φ50*17H mmCone Material:PETEdge: PaperNominal Power:3WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-66-16F35M-R
  • Diameter: Φ50*17H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-66-16F35M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD50-66-16F35M-R

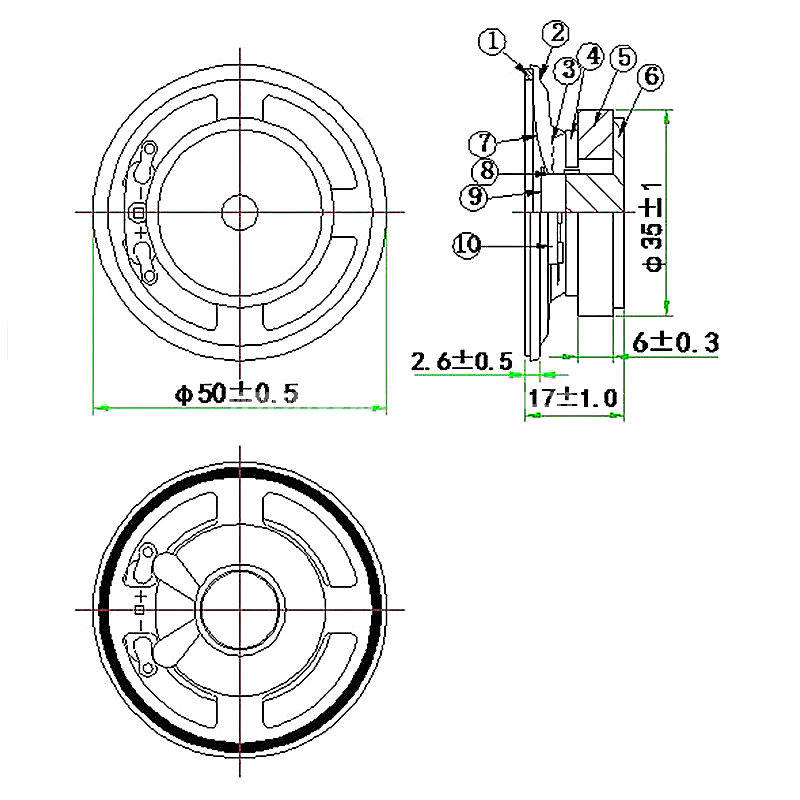

Dimension:Φ50*17H mm
Cone Material:PET
Edge: Paper
Nominal Power:3W
Maximum Power:5W
Impedance:16Ω±15%Ω
Voice coil:Φ13.28mm PSV+Cu
Fo:600±20%

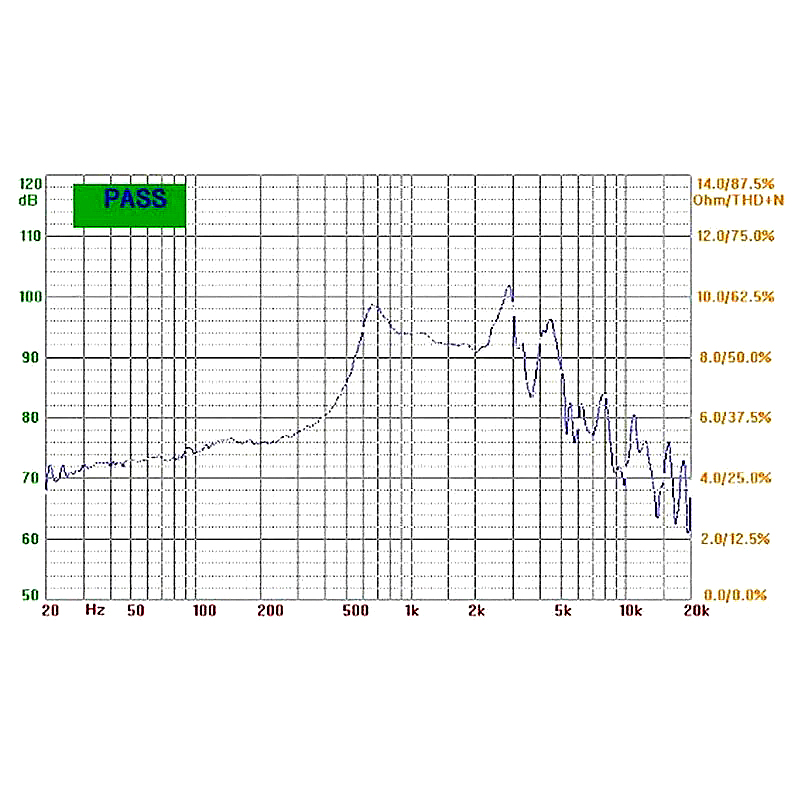

Response:Fo~5KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ35*18*6MM
Net weight:57g±8%
