Waterproof

Loudspeaker YD50-4-8N12.5M-R 50mm Small Internal Magnetic Waterproof Speaker Parts

  • Model YD50-4-8N12.5M-RDiameter:Φ50mmCone Material:MylarEdge:MylarNominal Power:0.5wMaximum Power:1wImpedance:815%ΩVoice coil:Φ13.3mmFo:55020%HzResponse:Fo-4.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-4-8N12.5M-R
  • Diameter: Φ50mm
  • Description
  • Order

Product Description

2

                           Model                 YD50-4-8N12.5M-R

Diameter:

Φ50mm

Cone Material:

Mylar

Edge:

Mylar

Nominal Power:

0.5w

Maximum Power:

1w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

550±20%Hz

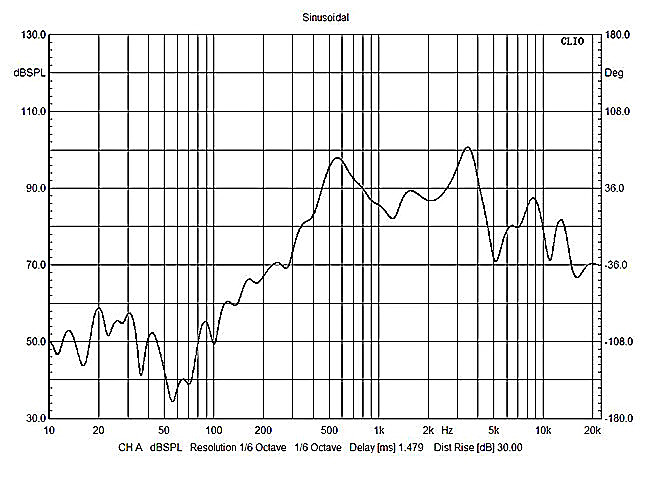

Response:

Fo-4.5kHz

S.P.L:

88±3dB/W/M

Magnet Size:

Φ12.5×2(NdFeB)

Net weight:

30g
