Loudspeaker 45mm YD45-11-45F32M-R Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 45mm YD45-11-45F32M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD45-11-45F32M-RDimension:45*16H mmCone Material:WaterproofEdge: PaperNominal Power:0.25WMaxim

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD45-11-45F32M-R
  • Diameter: 45*16H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 45mm YD45-11-45F32M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD45-11-45F32M-R

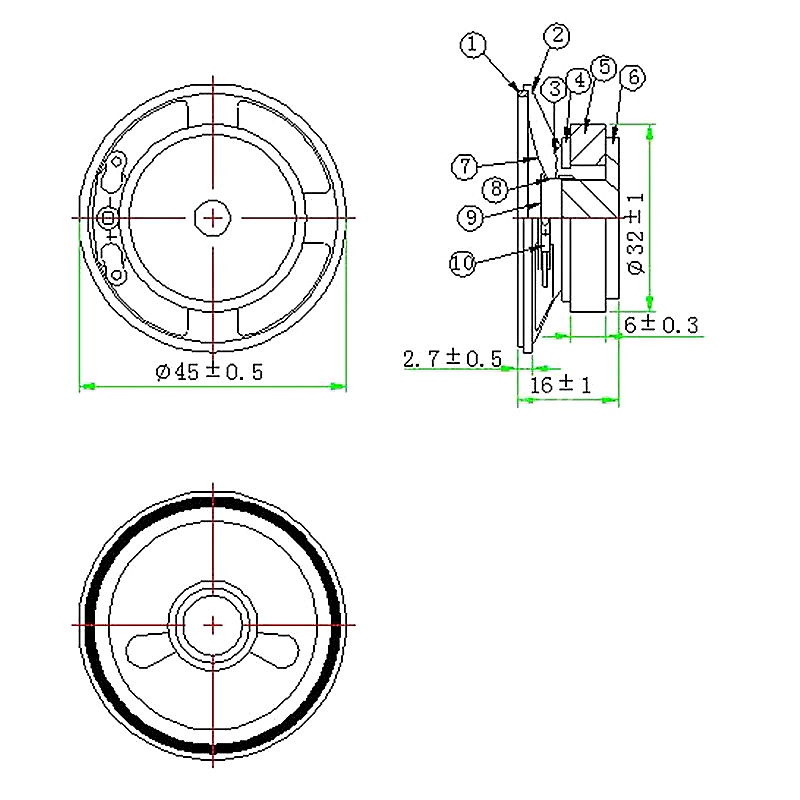

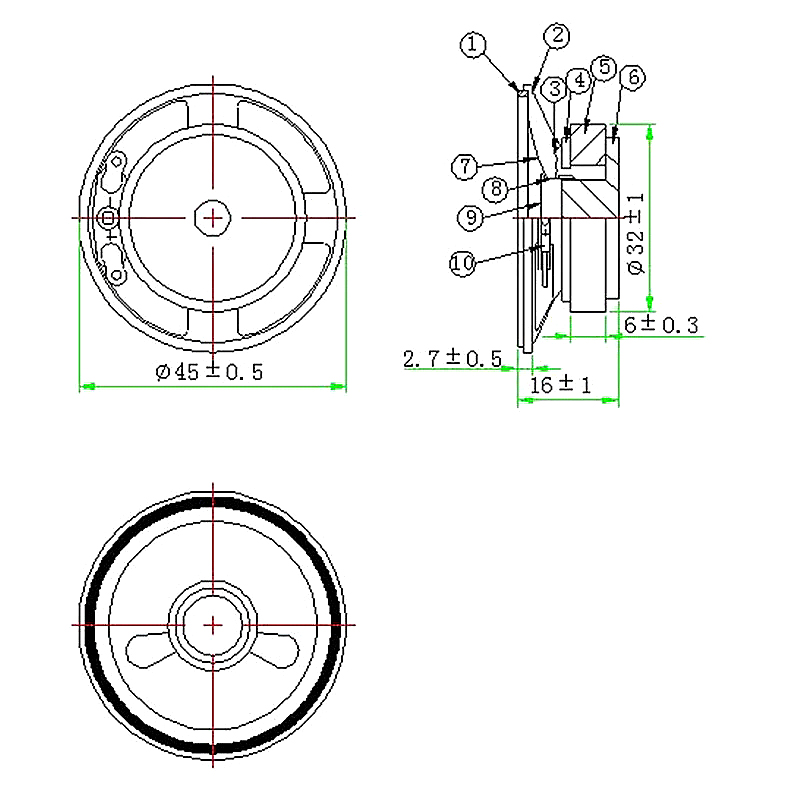

Dimension:45*16H mm
Cone Material:Waterproof
Edge: Paper
Nominal Power:0.25W
Maximum Power:1W
Impedance:45Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:650±20%

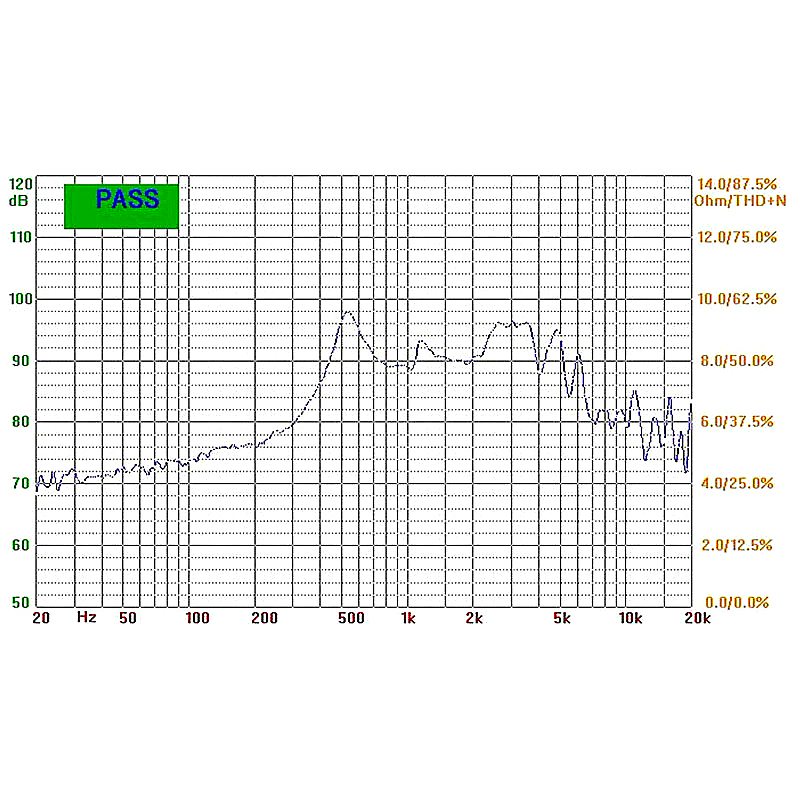

Response:Fo650~5KHZ
S.P.L:90±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6mm
Net weight:45g±8%
