Loudspeaker 45mm YD45-10-8N12.5M-R Min Full Range Waterproof Speaker Drivers

  • ModelYD45-10-8N12.5M-RDimension:Φ45*10H mmCone Material:PETEdge: PaperNominal Power:2WMaximum Power:3WImpedance:8Ω15%ΩVoice coil:Φ13.28mm PL+CuFo:65020%Response:Fo650~5KHZS.P.L:933dB(AT 0.1W/0.1M,Aver

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD45-10-8N12.5M-R
  • PDF
  • Description
  • Order

Product Description

ModelYD45-10-8N12.5M-R

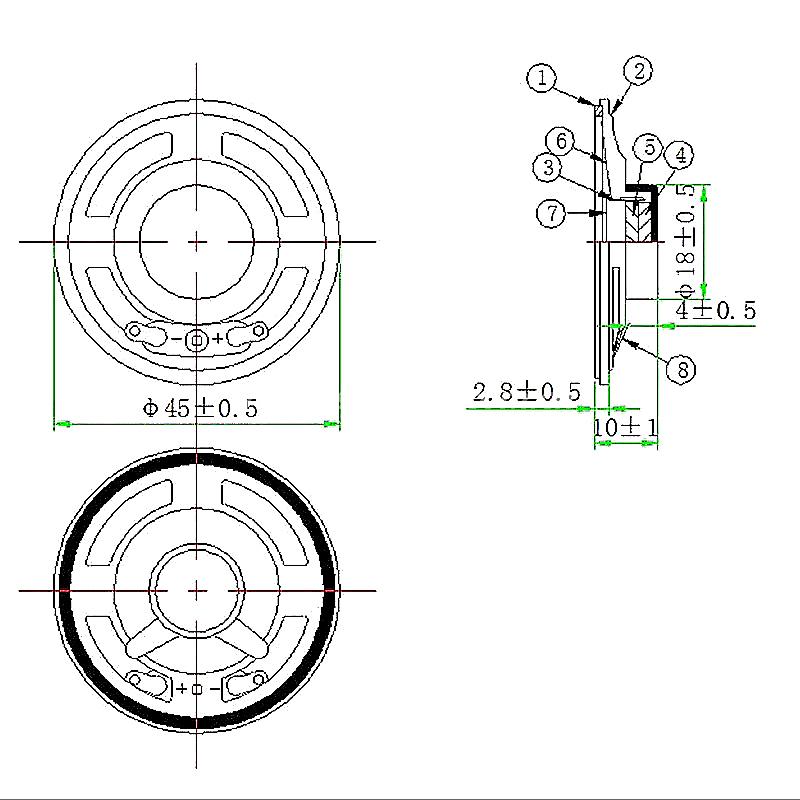

Dimension:Φ45*10H mm
Cone Material:PET
Edge: Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:650±20%
Response:Fo650~5KHZ
S.P.L:93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2mm
Net weight:14g±8%
