Loudspeaker 41mm YD41-03-8F32P-R Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 41mm YD41-03-8F32P-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD41-03-8F32P-RDimension:Φ41*57*20.5H mmCone Material:PETEdge: PaperNominal Power:1WMaximum Pow

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD41-03-8F32P-R
  • Diameter: Φ41mm*57mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 41mm YD41-03-8F32P-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD41-03-8F32P-R

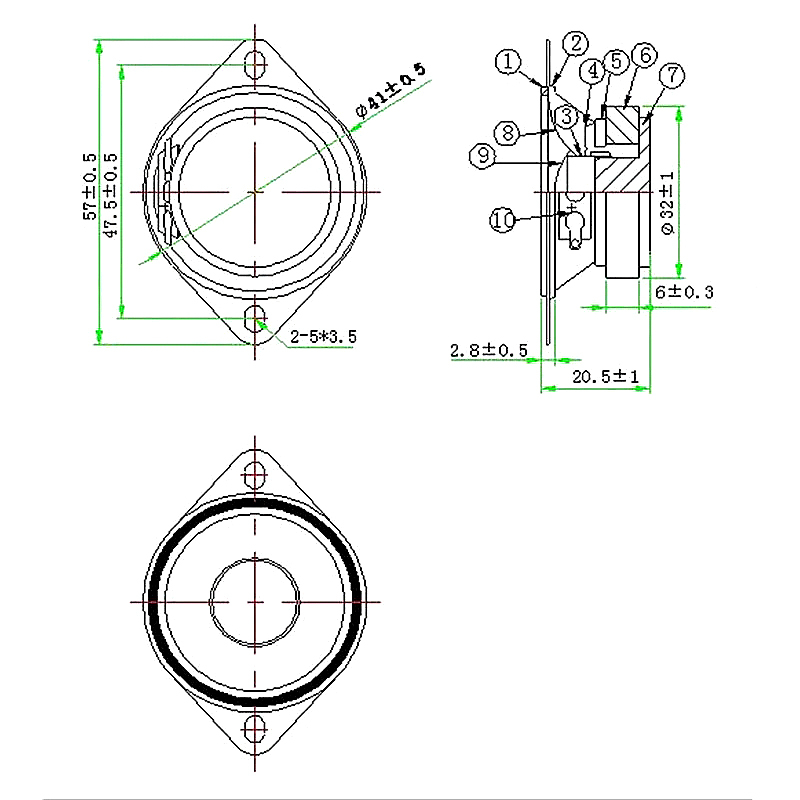

Dimension:Φ41*57*20.5H mm
Cone Material:PET
Edge: Paper
Nominal Power:1W
Maximum Power:2W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:1400±20%

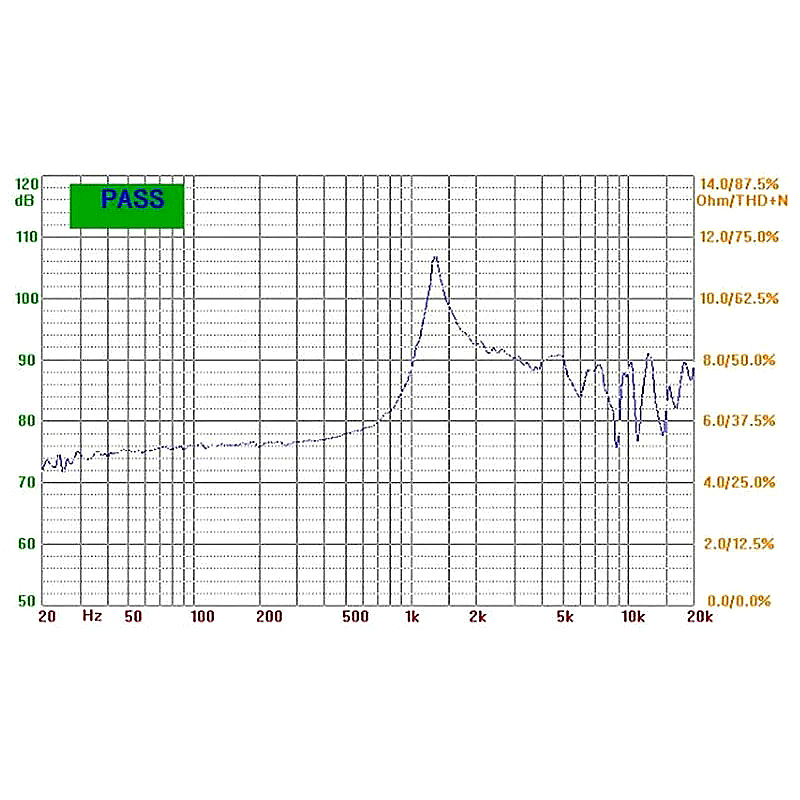

Response:Fo~15KHZ
S.P.L:95±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6MM
Net weight:48g±8%
