Product Description

Loudspeaker 41mm YD41-02-8F32CT-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD41-02-8F32CT-R

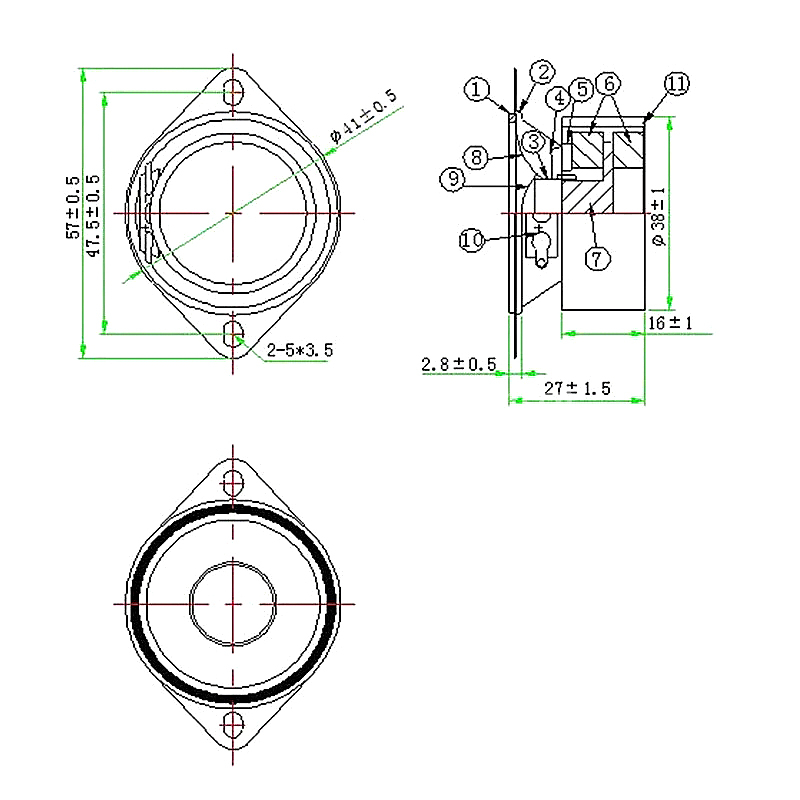

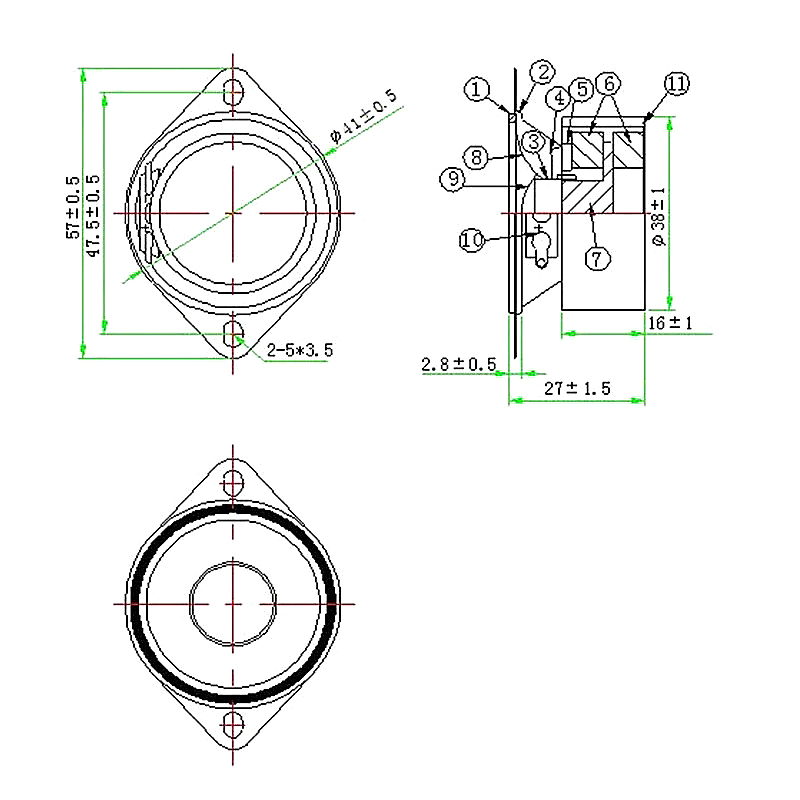

Dimension:Φ41*57*27H mm
Cone Material:PET
Edge: Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:1250±20%

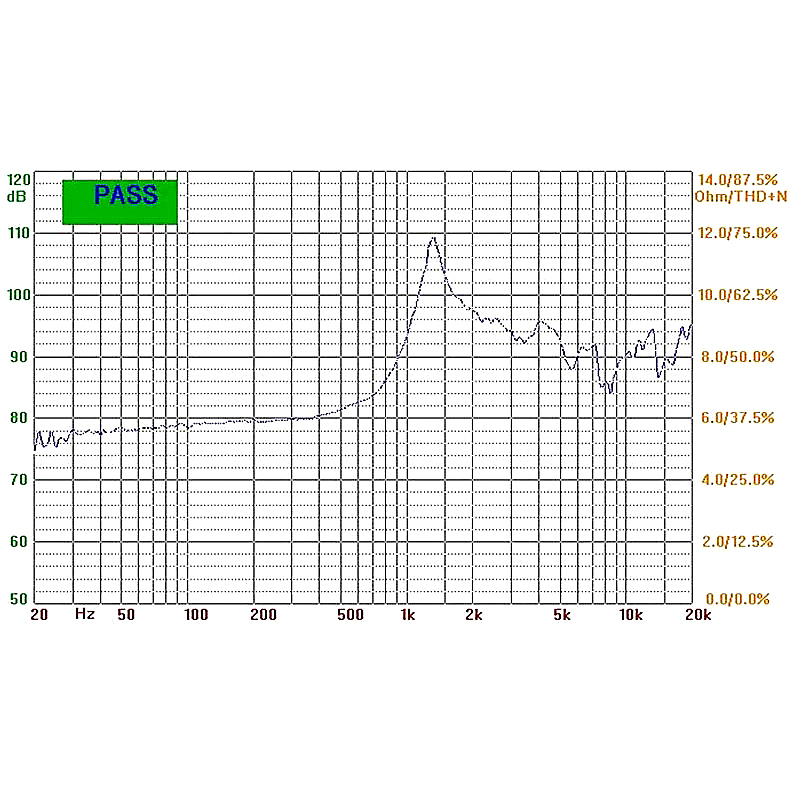

Response:Fo~20KHZ
S.P.L:95±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:2-Φ32*18*6MM
Net weight:75g±8%
