Waterproof

Loudspeaker 40mm YD40-23-4N32M-R Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 40mm YD40-23-4N32M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD40-23-4N32P-RDimension:Φ40*22H mmCone Material:PEIEdge: PaperNominal Power:3WMaximum Power:5W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD40-23-4N32M-R
  • Diameter: Φ40mm*22mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 40mm YD40-23-4N32M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD40-23-4N32P-R

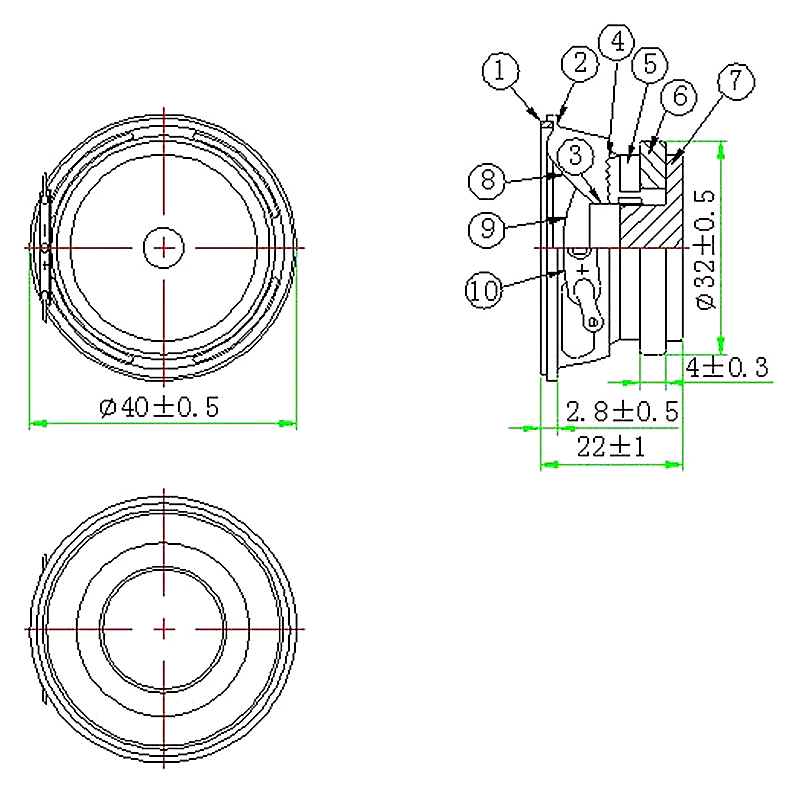

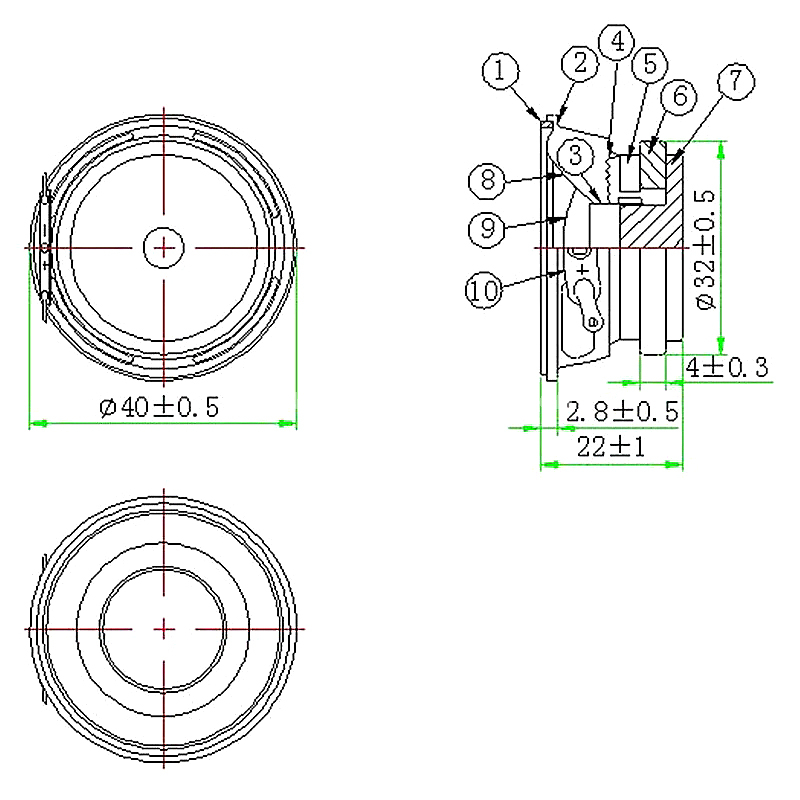

Dimension:Φ40*22H mm
Cone Material:PEI
Edge: Paper
Nominal Power:3W
Maximum Power:5W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:680±20%
Response:Fo~20KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*4mm
Net weight:55g±8%
