Loudspeaker 53mm YD53-01-8N18.5M-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 53mm YD53-01-8N18.5M-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD53-01-8N18.5M-RDimension:53*53*25H mmCone Material:PPEdge:PUNominal Power:5WMaximum Po

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD53-01-8N18.5M-R
  • Diameter: 53*53*25H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 53mm YD53-01-8N18.5M-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD53-01-8N18.5M-R

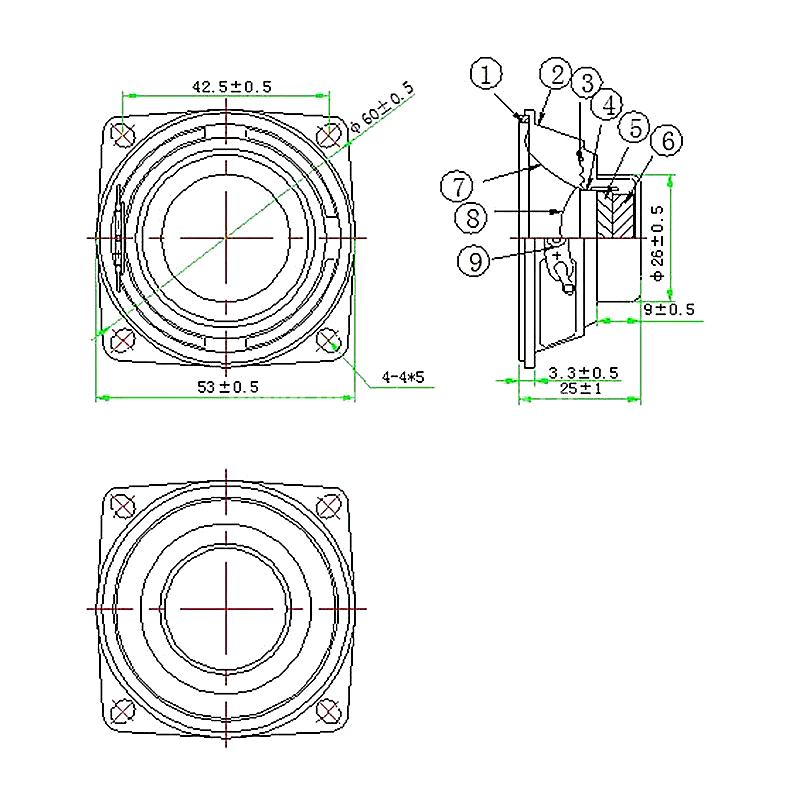

Dimension:53*53*25H mm
Cone Material:PP
Edge:PU
Nominal Power:5W
Maximum Power:6W
Impedance:8±15%Ω
Voice coil:Φ19.45mm KSV+Cu
Fo:180±20%Hz

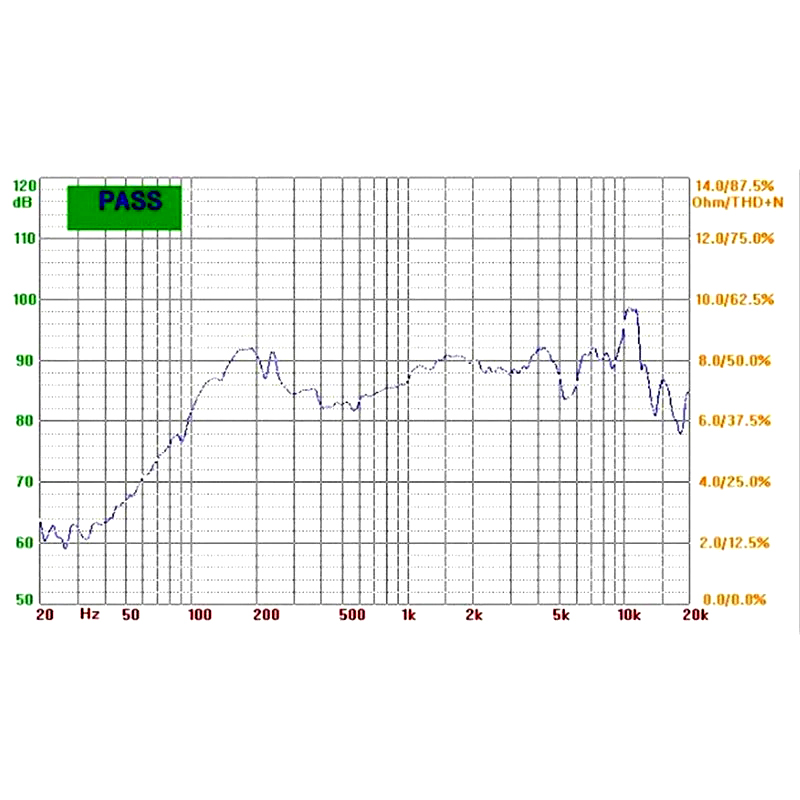

Response:Fo~12KHZ
S.P.L:86±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ18.5*4.5mm
Net weight:46g±8%
