Loudspeaker 57mm 5W YD57-43-4N32M-R high dB Waterproof Speaker Drivers

  • Loudspeaker 57mm YD57-43-4N32M-R 5W high power Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD57-43-4N32M-RDimension:57*57*18.5H mmCone Material:PETEdge:PaperNominal Power:4WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-43-4N32M-R
  • Diameter: 57*57*18.5H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 57mm YD57-43-4N32M-R 5W high power Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd


未标题-1 拷贝

ModelYD57-43-4N32M-R

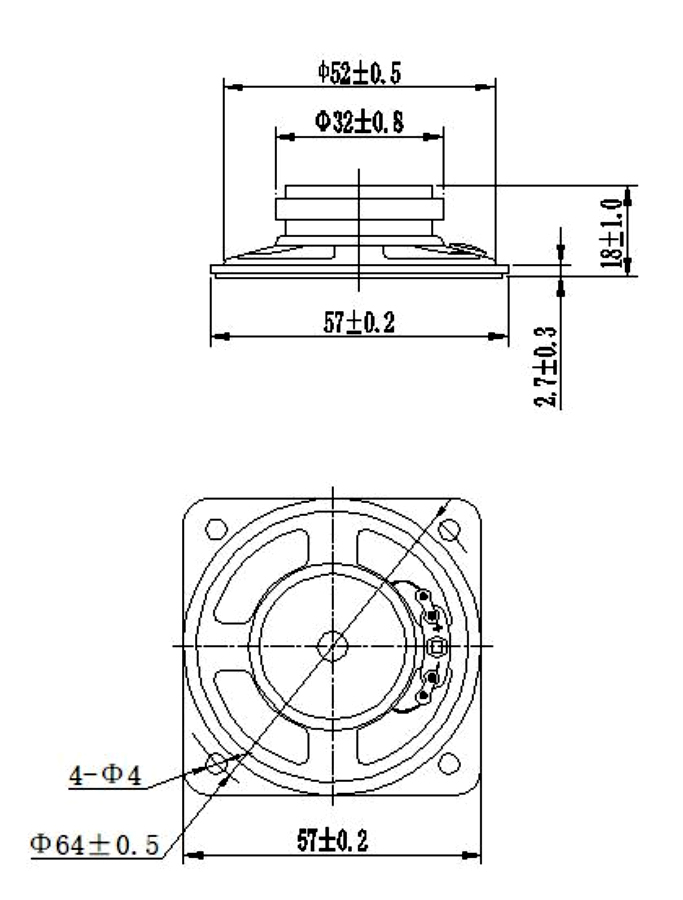

Dimension:57*57*18.5H mm
Cone Material:PET
Edge:Paper
Nominal Power:4W
Maximum Power:5W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:550±20%

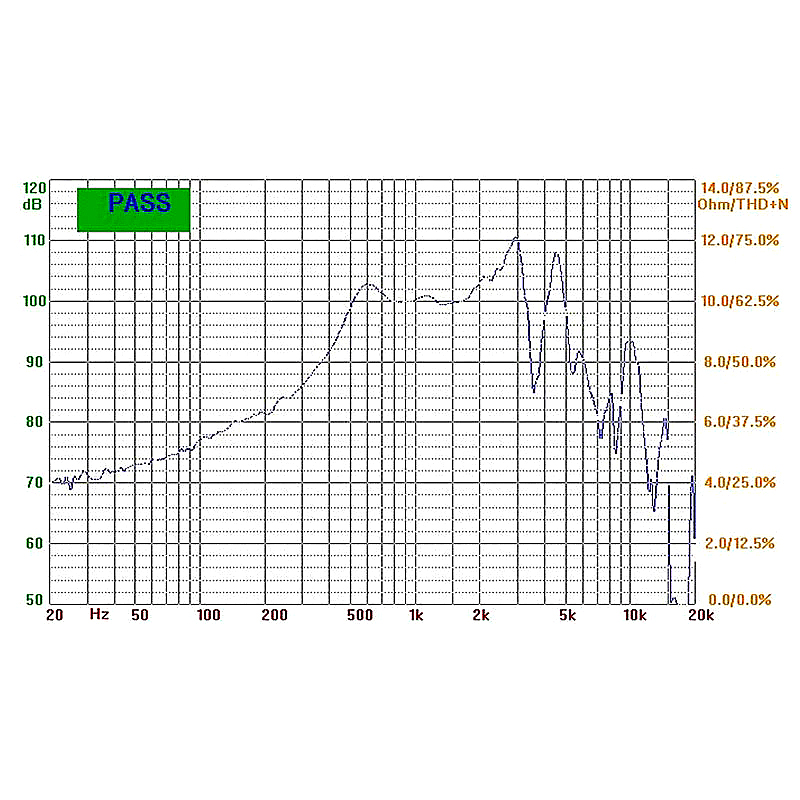

Response:Fo~5KHZ
S.P.L:102±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*4mm
Net weight:55g±8%
