Loudspeaker 40x70mm YD4070-24-8F40P-R Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 40mm*70mm YD4070-24-8F40P-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD4070-24-8F40P-RDimension:40*71*28H mmCone Material:PETEdge: PaperNominal Power:5WMaxim

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD4070-24-8F40P-R
  • Diameter: 40*71*28H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 40mm*70mm YD4070-24-8F40P-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd








ModelYD4070-24-8F40P-R

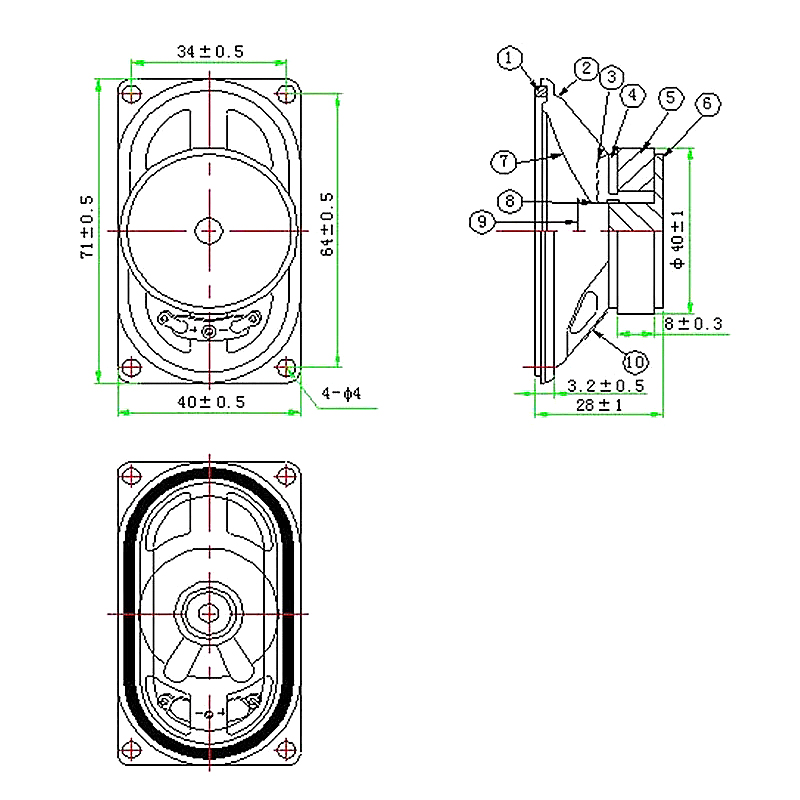

Dimension:40*71*28H mm
Cone Material:PET
Edge: Paper
Nominal Power:5W
Maximum Power:6W
Impedance:8Ω±15%Ω
Voice coil:13.28mm KSV+Cu
Fo:550±20%

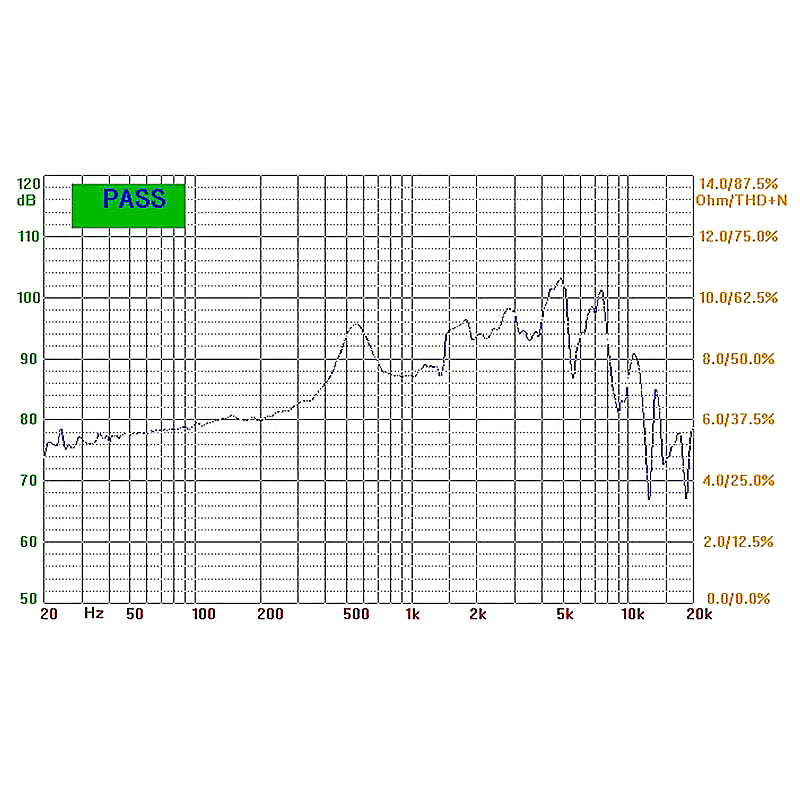

Response:Fo~10KHZ
S.P.L:90±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ40*19*8mm
Net weight:92g±8%
