Waterproof

Loudspeaker 40mm YD40-24-4N12.5P-R 22mm Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 40mm YD40-24-4N12.5P-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD40-24-4N12.5P-RDimension:Φ40*20H mmCone Material:PU+PaperEdge: RubberNominal Power:3WMaximu

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD40-24-4N12.5P-R
  • Diameter: Φ40*20H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 40mm YD40-24-4N12.5P-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD40-24-4N12.5P-R

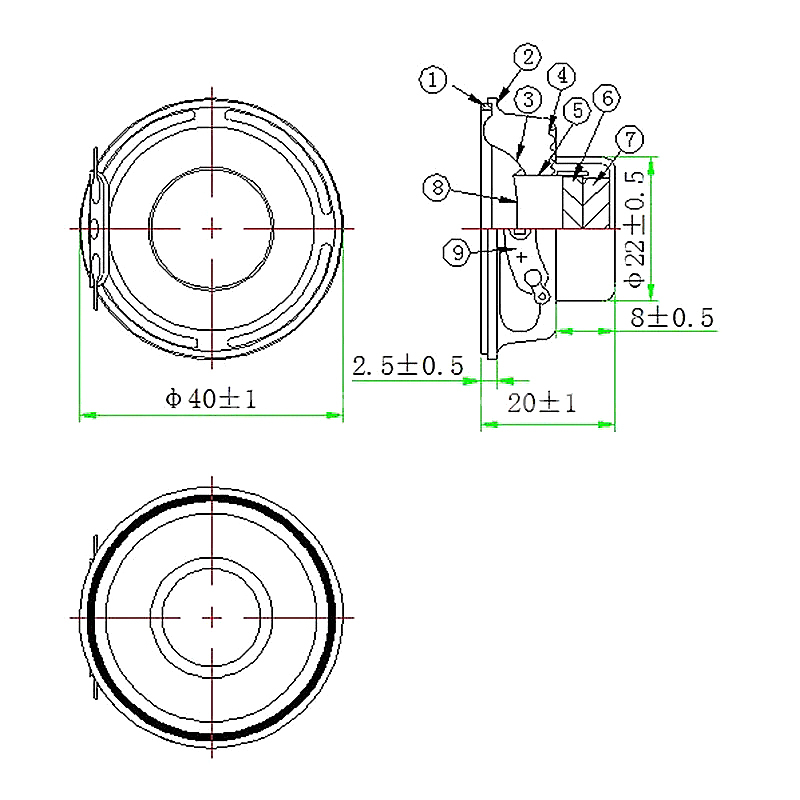

Dimension:Φ40*20H mm
Cone Material:PU+Paper
Edge: Rubber
Nominal Power:3W
Maximum Power:5W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:350±20%

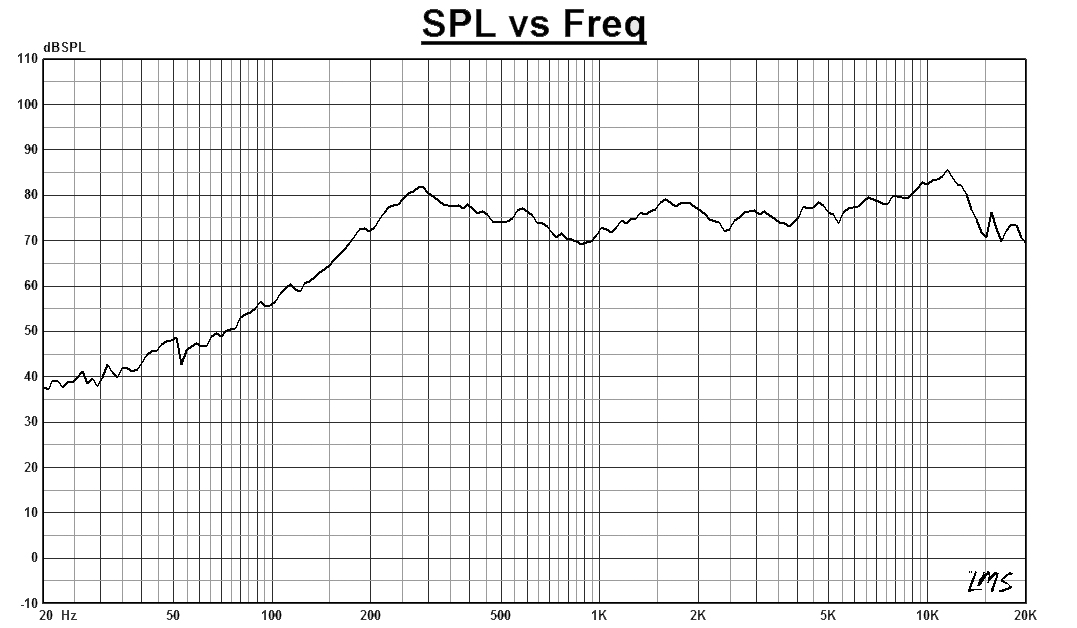

Response:Fo~20KHZ
S.P.L:80±3dB(at0.1W/0.1m 0.5, 0.8, 1.0, 2 KHZ)
Magnet Size:Φ12.5*3mm
Net weight:22g±8%
