Loudspeaker 66mm YD66-32-4F32P-R 4 ohm Equipment Speaker Drivers

  • Loudspeaker 66mm YD66-32-4F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD66-32-4F32P-RDimension:66*66*19H mmCone Material:PaperEdge:PaperNominal Power:5WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-32-4F32P-R
  • Diameter: 66*66*19H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 66mm YD66-32-4F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD66-32-4F32P-R

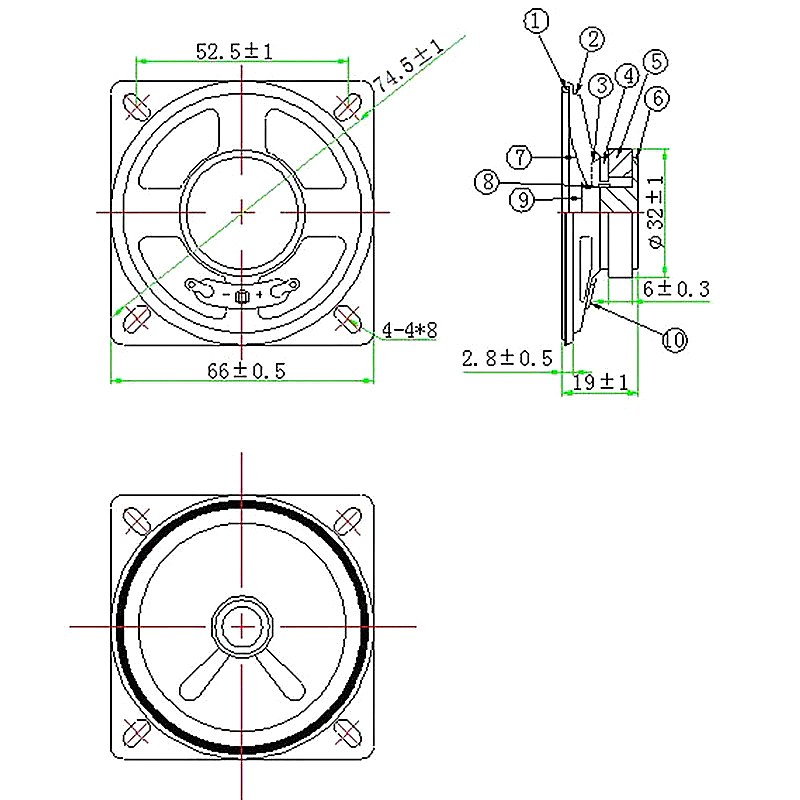

Dimension:66*66*19H mm
Cone Material:Paper
Edge:Paper
Nominal Power:5W
Maximum Power:6W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:400±20%

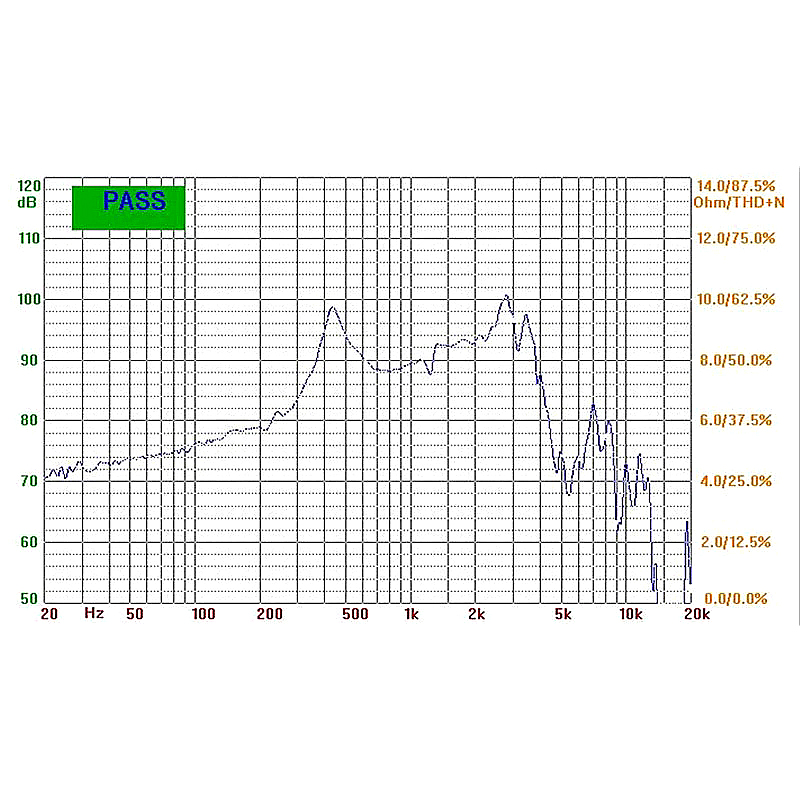

Response:Fo~4KHZ
S.P.L:90±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6mm
Net weight:52g±8%
