Loudspeaker 70mm YD70-04-8N12P-R 22mm magnet Min Full Range Equipment Speaker Drivers

  • Loudspeaker 70mm YD70-04-8N12P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD70-04-8N12P-RDimension:Φ70*20H mmCone Material:PaperEdge:PaperNominal Power:1WMaximum Power:2W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD70-04-8N12P-R
  • Diameter: Φ70*20H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 70mm YD70-04-8N12P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD70-04-8N12P-R

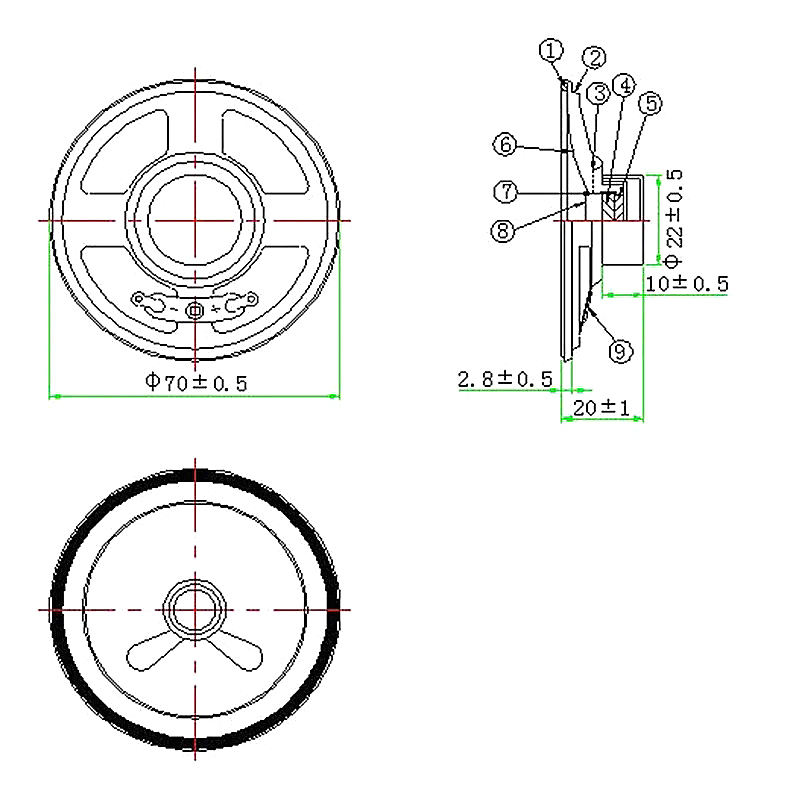

Dimension:Φ70*20H mm
Cone Material:Paper
Edge:Paper
Nominal Power:1W
Maximum Power:2W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:350±20%

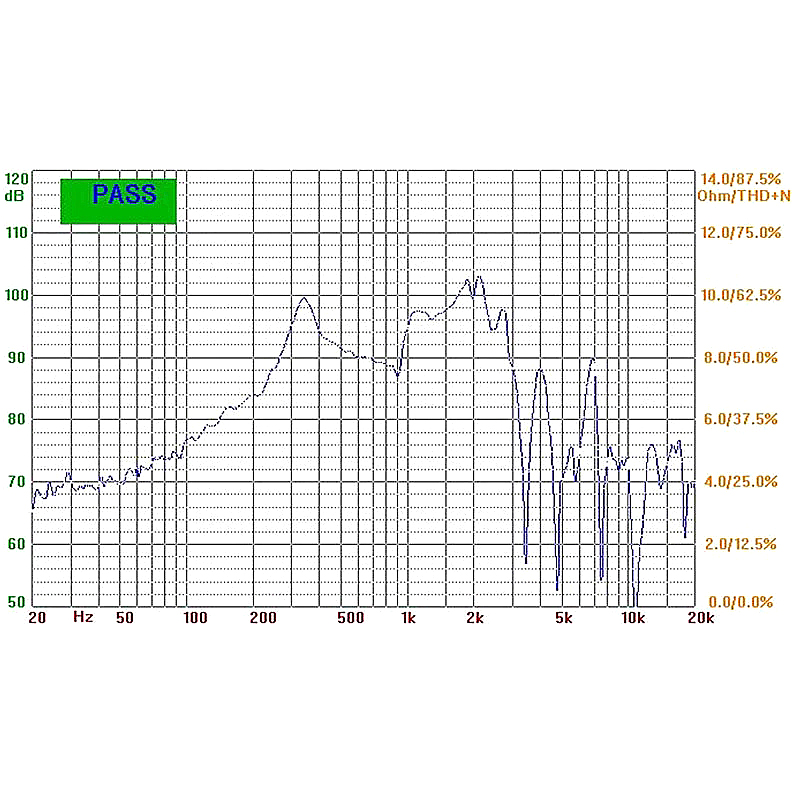

Response:Fo~5KHZ
S.P.L:93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.5mm
Net weight:35g±8%
