Loudspeaker 87mm YD87-17-8F60P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 87mm YD87-17-8F60P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD87-17-8F60P-RDimension:Φ87*41H mmCone Material: PaperEdge:RubberNominal Power:20WMaximum Power:25

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD87-17-8F60P-R
  • Diameter: Φ87*41H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 87mm YD87-17-8F60P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD87-17-8F60P-R

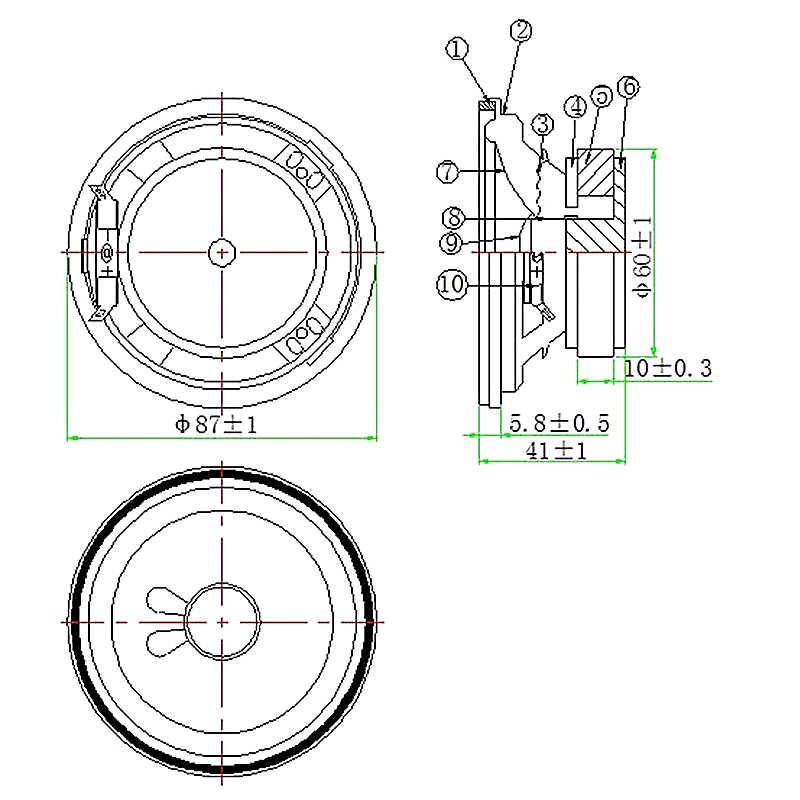

Dimension:Φ87*41H mm
Cone Material: Paper
Edge:Rubber
Nominal Power:20W
Maximum Power:25W
Impedance:8Ω±15%Ω
Voice coil:Φ19.45 ASV+Cu
Fo:120±20%
Response:Fo~20KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ60*32*10mm
Net weight:255g±8%
