Loudspeaker YD100-16-4F70U 4 Inch YD100 Full Range Stereo Loudspeaker Unit Raw Speaker Drivers with magnet cover

  • Model YD100-16-4F70UDiameter:105105mmCone Material:PaperEdge:FoamNominal Power:10wMaximum Power:20wImpedance:815%ΩVoice coil:Φ19.45mmFo:11020%HzResponse:F

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD100-16-4F70U
  • Diameter: 105×105mm
  • PDF
  • Description
  • Order

Product Description

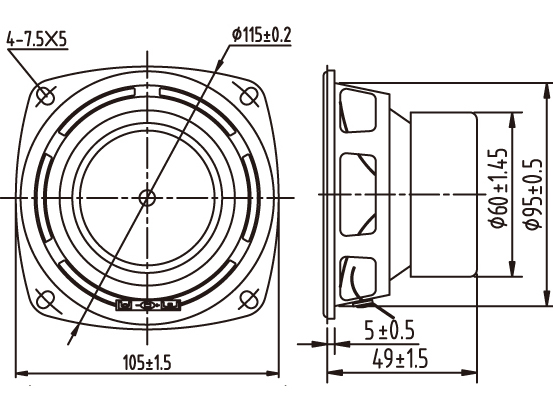

2

                        Model                       YD100-16-4F70U

Diameter:

105×105mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

10w

Maximum Power:

20w

Impedance:

8±15%Ω

Voice coil:

Φ19.45mm

Fo:

110±20%Hz

Response:

Fo-10kHz

S.P.L:

90±3dB/1W/0.5M

Magnet Size:

Φ60×32×10(Ferrite) Φ45×22×8(Ferrite)

Net weight:

483g

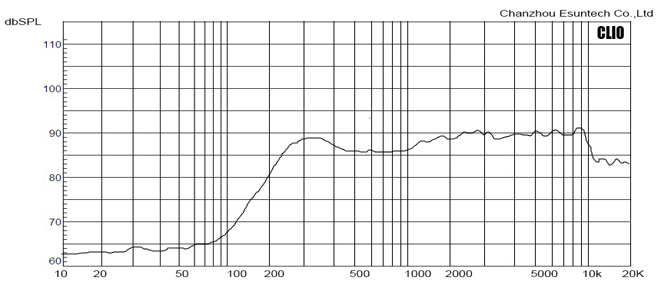

3
