Loudspeaker

Loudspeaker YD200-17-6.5F126R 8 Inch Car Door Speaker drivers, high quality Car Rear Speaker unit

  • Model YD200-17-6.5F126RDiameter:Φ218mmCone Material:PaperEdge:RubberNominal Power:30wMaximum Power:100wImpedance:6.515%ΩVoice coil:Φ36.6mmFo:3520%HzResponse:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD200-17-6.5F126R
  • Diameter: Φ218mm
  • PDF
  • Description
  • Order

Product Description

2

                           Model                 YD200-17-6.5F126R

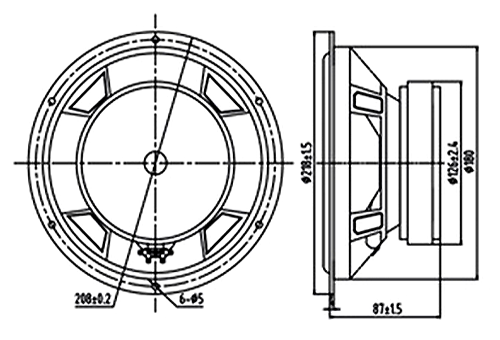

Diameter:

Φ218mm

Cone Material:

Paper

Edge:

Rubber

Nominal Power:

30w

Maximum Power:

100w

Impedance:

6.5±15%Ω

Voice coil:

Φ36.6mm

Fo:

35±20%Hz

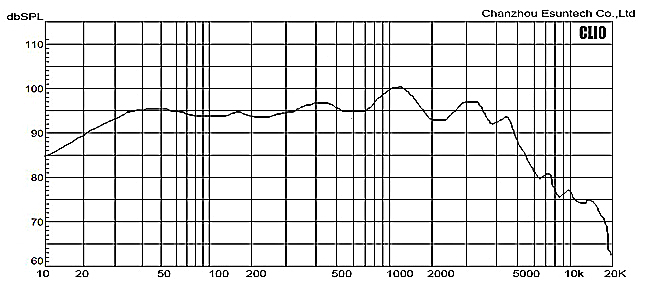

Response:

Fo-1kHz

S.P.L:

89±2dB/1W/0.5M

Magnet Size:

Φ126×62×20(Ferrite)

Net weight:

2235g
