Loudspeaker

Loudspeaker 63mm YD63-01-8N12.5P-R 18mm magnet Equipment Speaker Drivers

  • Loudspeaker 63mm YD63-01-8N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD63-01-8N12.5P-RDimension:63*63*18H mmCone Material:PaperEdge:PaperNominal Power:3WMaximum Po

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD63-01-8N12.5P-R
  • Diameter: 63*63*18H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 63mm YD63-01-8N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD63-01-8N12.5P-R

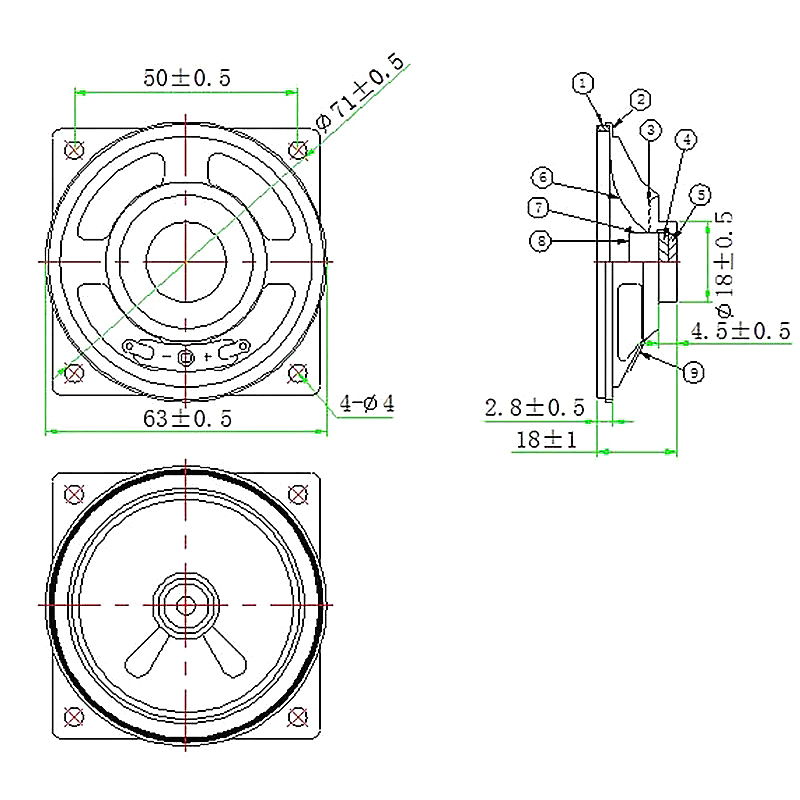

Dimension:63*63*18H mm
Cone Material:Paper
Edge:Paper
Nominal Power:3W
Maximum Power:4W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:350±20%
Response:Fo~10KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:22g±8%
