Product Description

Loudspeaker 70mm YD70-09-8F40M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD70-09-8F40M-R

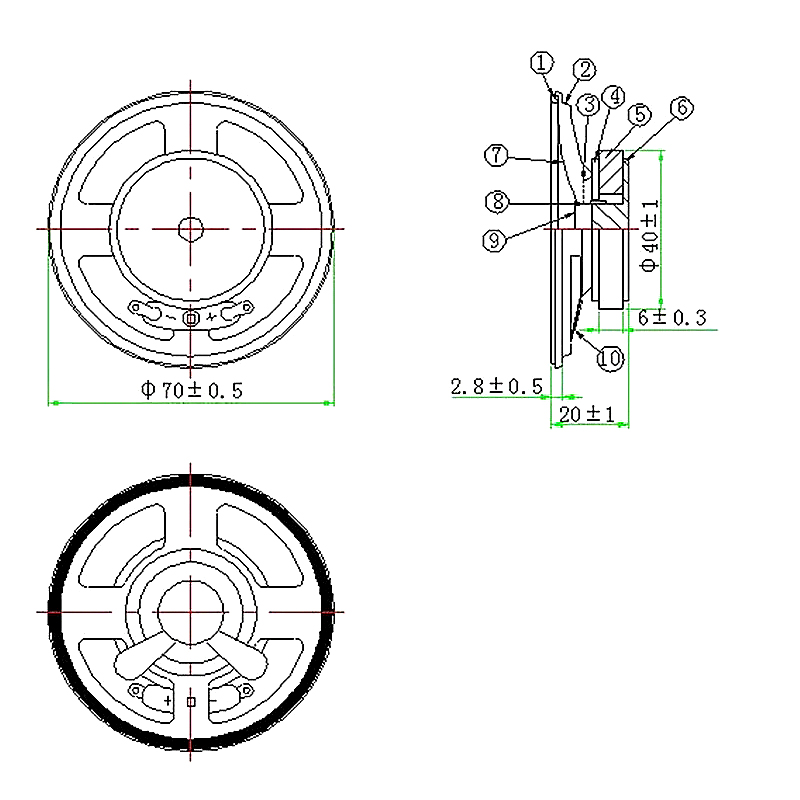

Dimension:Φ70*20H mm
Cone Material:PET
Edge: Paper
Nominal Power:3W
Maximum Power:3.5W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:400±20%

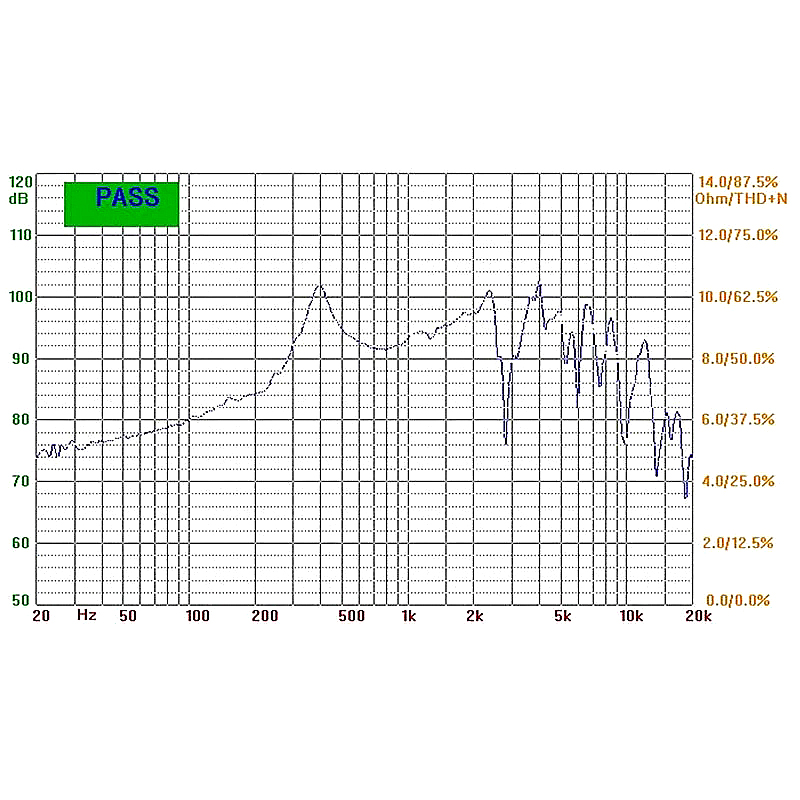

Response:Fo~10KHZ
S.P.L:93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ40*19*6mm
Net weight:75g±8%
