Loudspeaker 86mm YD86-01-8N12.5M-R Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 86mm YD86-01-8N12.5M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD86-01-8N12.5M-RDimension:86*86*26H mmCone Material:PETEdge: PaperNominal Power:3WMaximum Po

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD86-01-8N12.5M-R
  • Diameter: 86*86*26H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 86mm YD86-01-8N12.5M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD86-01-8N12.5M-R

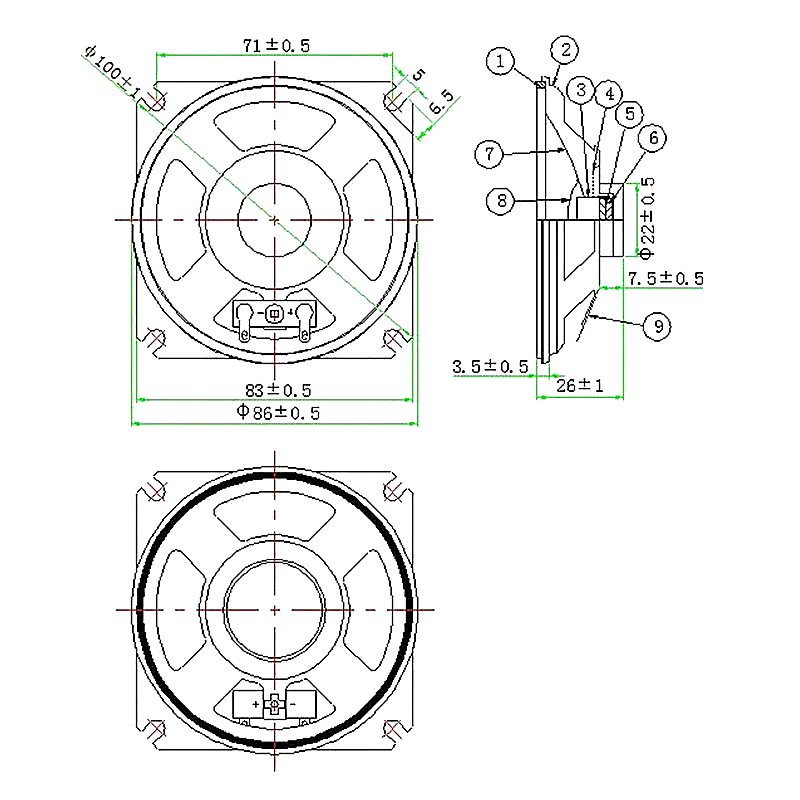

Dimension:86*86*26H mm
Cone Material:PET
Edge: Paper
Nominal Power:3W
Maximum Power:5W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:350±20%
Response:Fo~10KHZ
S.P.L:91±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2mm
Net weight:45g±8%
