Loudspeaker

Loudspeaker YD200-06F-8F100RPP2W 8 Inch Car Door Coaxial Speaker, Car Rear Speaker

  • Model YD200-06F-8F100RPP2WDiameter:Φ208mmCone Material:PPEdge:RubberNominal Power:15wMaximum Power:25wImpedance:815%ΩVoice coil:Φ25.9mmFo:17520%HzResponse:Fo-13kH

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD200-06F-8F100RPP2W
  • Diameter: 94±3dB
  • PDF
  • Description
  • Order

Product Description

2

                         Model              YD200-06F-8F100RPP2W

Diameter:

Φ208mm

Cone Material:

PP

Edge:

Rubber

Nominal Power:

15w

Maximum Power:

25w

Impedance:

8±15%Ω

Voice coil:

Φ25.9mm

Fo:

175±20%Hz

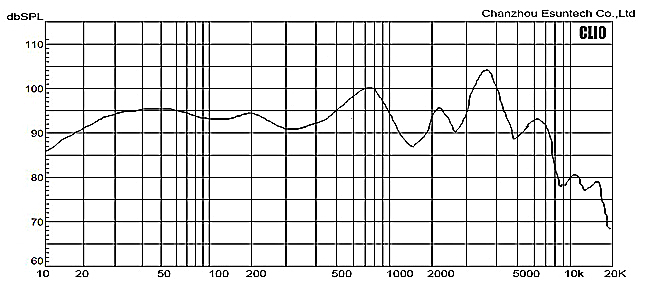

Response:

Fo-13kHz

S.P.L:

94±3dB/W/M

Magnet Size:

Φ80×32×15(Ferrite)

Net weight:

800g
