Loudspeaker YD70-01-8F32M 70mm 2.5inch Mylar Cone Loudspeaker Unit Waterproof Speaker Parts

  • Model YD70-01-8F32MDiameter: Φ70mmCone Material: MylarEdge: MylarNominal Power: 1wMaximum Power: 2wImpedance: 815%ΩVoice coi

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD70-01-8F32M
  • Diameter: Φ70mm
  • PDF
  • Description
  • Order

Product Description

2

                        Model                       YD70-01-8F32M

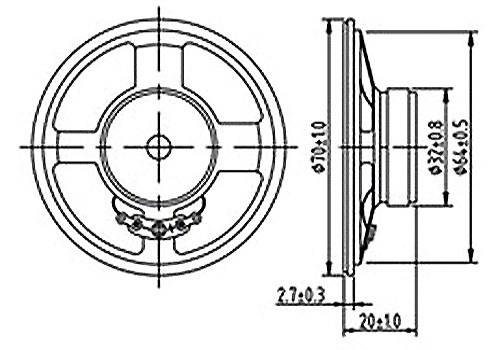

Diameter:

      Φ70mm

Cone Material:

      Mylar

Edge:

      Mylar

Nominal Power:

      1w

Maximum Power:

      2w

Impedance:

      8±15%Ω

Voice coil:

      Φ13.3mm

Fo:

      350±20%Hz

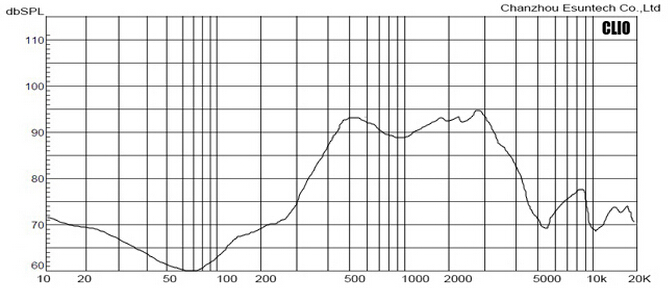

Response:

      Fo-4.5kHz

S.P.L:

      82±3dB/W/M

Magnet Size:

      Φ32×Φ18×6(Ferrite)

Net weight:

      56g
