Loudspeaker 50mm YD50-61-4N12.5M-R 18mm magnet Waterproof Speaker Drivers

  • Loudspeaker 50mm YD50-61-4N12.5M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-61-4N12.5M-RDimension:Φ50*12H mmCone Material:PETEdge: PaperNominal Power:2WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-61-4N12.5M-R
  • Diameter: Φ50*12H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-61-4N12.5M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD50-61-4N12.5M-R

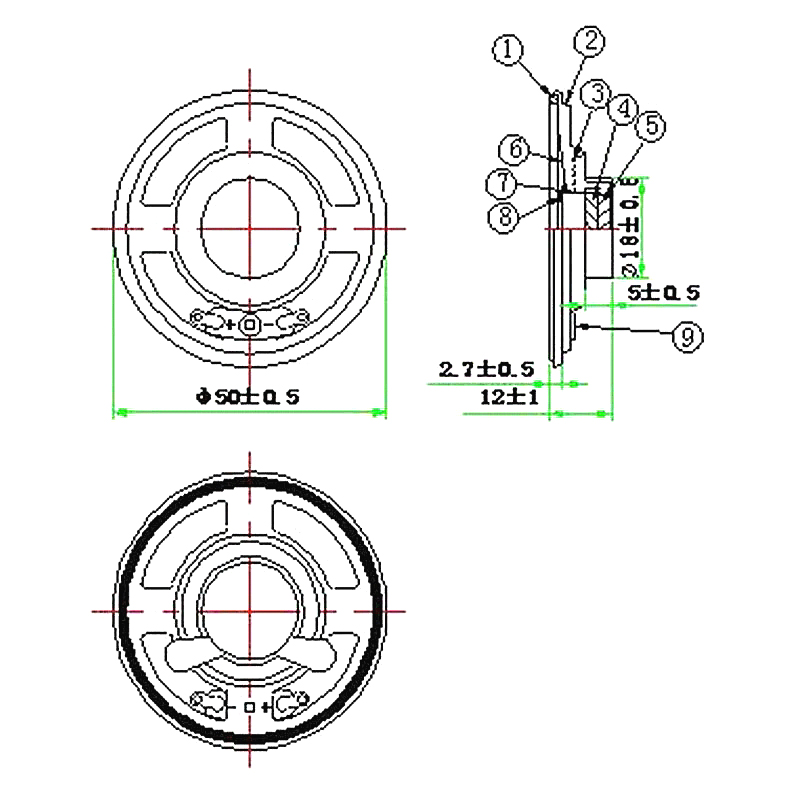

Dimension:Φ50*12H mm
Cone Material:PET
Edge: Paper
Nominal Power:2W
Maximum Power:3W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:750±20%
Response:Fo750~5KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:17g±8%
