Loudspeaker

Loudspeaker 70x40mm YD4070-01-8F32CT Min Full Range TV speaker laptop speaker

  • Loudspeaker 7*40mm YD4070-01-8F32CT Min Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD4070-01-8F32CTDimension:7140mmCone Material:PaperEdge:Foam/ClothNominal Power:3WMaximum Po

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD4070-01-8F32CT
  • Diameter: 7*40mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 7*40mm YD4070-01-8F32CT Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd






2

ModelYD4070-01-8F32CT

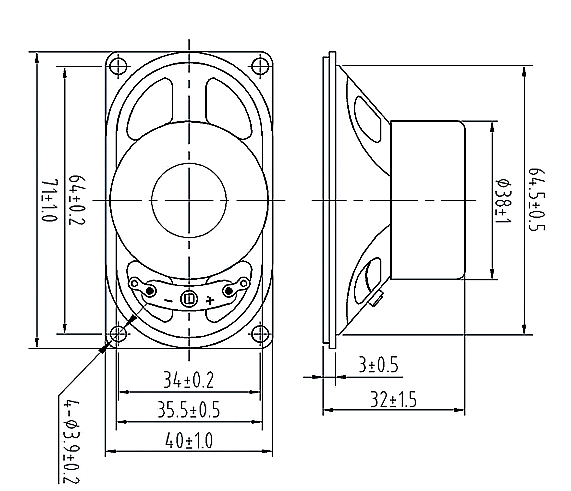

Dimension:71×40mm
Cone Material:Paper
Edge:Foam/Cloth
Nominal Power:3W
Maximum Power:10W
Impedance:8±15%Ω
Fo:300±20%Hz

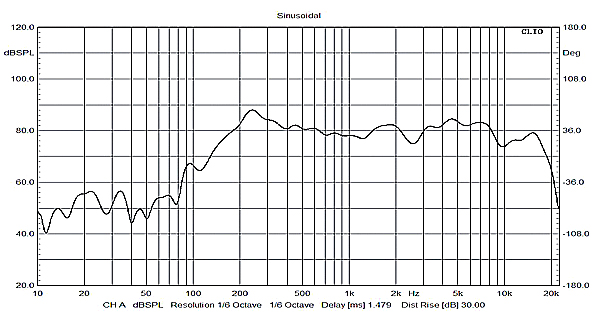

Response:Fo~10KHZ
S.P.L:87±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ32×18×6(Ferrite)
Φ32×18×6(Ferrite)
Net weight:87g±8%
