TV speaker 50*90mm YD5090-14-8F32UT Full Range rectangular speaker laptop speaker

  • Loudspeaker 50mmx90mm YD5090-14-8F32UT Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdYD5090-14-8F32UTModelDimension:9050mmCone Material:PaperEdge:FoamNominal Power:3WMaximum Power:5WI

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD5090-14-8F32UT
  • Diameter: 50mmx90mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mmx90mm YD5090-14-8F32UT Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd






2

YD5090-14-8F32UT

Model

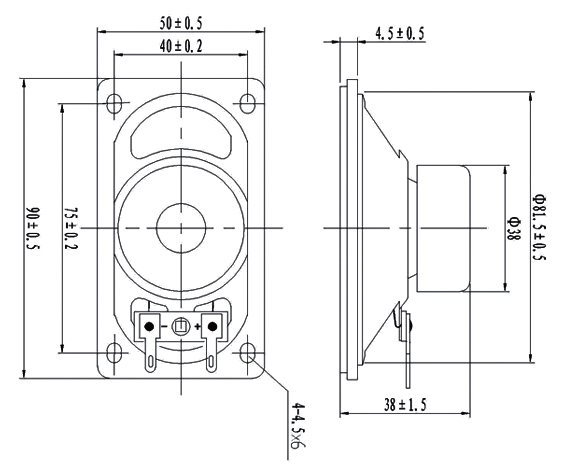

Dimension:90×50mm
Cone Material:Paper
Edge:Foam
Nominal Power:3W
Maximum Power:5W
Impedance:8±15%Ω
Fo:200±20%Hz

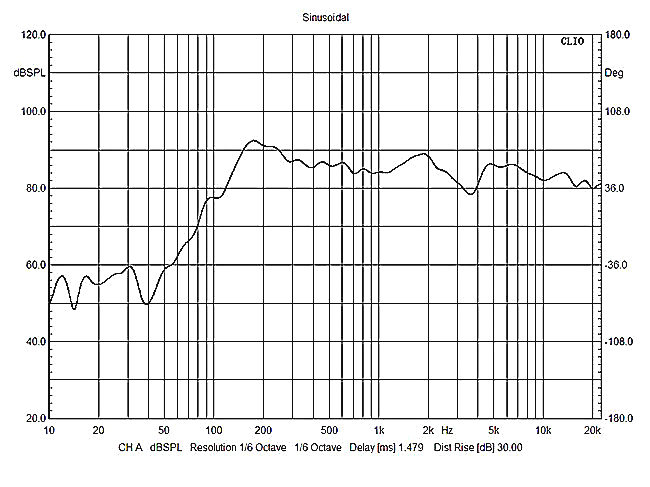

Response:Fo~10KHZ
S.P.L:88±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32×18×6(Ferrite)
Φ32×18×6(Ferrite)

3
