Loudspeaker YD100-05A-8F45P 4 Inch YD100 full range surround sound audio speaker unit raw speaker

  • Model YD100-05A-8F45PDiameter:102102mmCone Material:PaperEdge:PaperNominal Power:3wMaximum Power:5wImpedance:815%ΩVoice coil:Φ13.3mmFo:14020%HzResponse:Fo-8

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD100-05A-8F45P
  • Diameter: 102×102mm
  • PDF
  • Description
  • Order

Product Description

未标题-1

                           Model                  YD100-05A-8F45P

Diameter:

102×102mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

3w

Maximum Power:

5w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

140±20%Hz

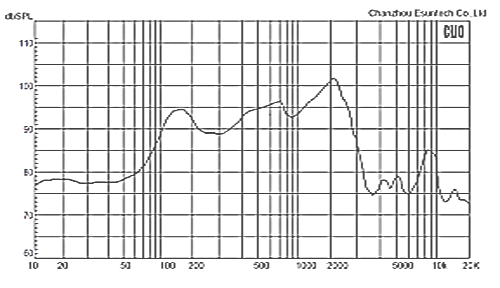

Response:

Fo-8kHz

S.P.L:

93±3dB/1W/0.5M

Magnet Size:

Φ45×19×8(Ferrite)

Net weight:

146g
